Results & Consultation Tips

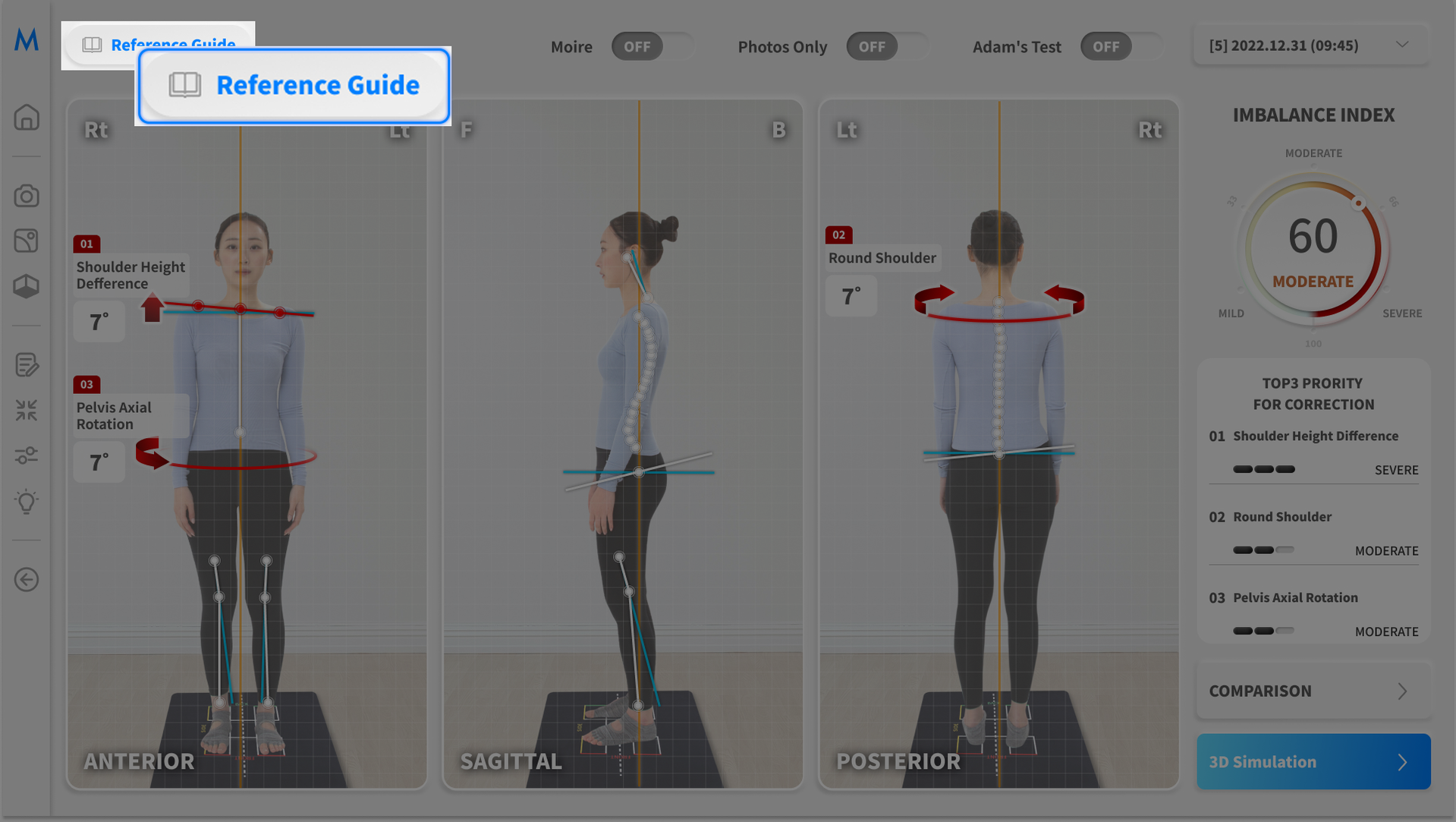

📌 Reference Guide

• Click the [Reference Guide] located at the top-left corner of the score screen.
• This guide provides clear and helpful explanations on:
  • How measurement angles are calculated and what the reference angles mean
  • What the reference lines indicate
  • How Moti Physio represents spinal positioning on the screen
    Use this guide to support smoother, more accurate, and effective consultations

📌 Risk Levels:

• 0–33: Mild
• 34–66: Moderate
• 67–100: Severe

Posture Analysis

Results

Displays front, side, and back photos along with the Top 3 imbalances.

Counseling Tip:

• Encourage users to visually recognize their posture imbalances.
• Emphasize that higher scores indicate
  a greater risk of pain or injury.
• Use 3D simulations to enhance engagement—demonstrate how posture may worsen over time if left uncorrected and emphasize the importance of improvement.
• Comparison Feature: Displays improvements from most to least corrected, providing 3D skeleton animations of progress, which enhances user satisfaction in physiotherapy or corrective exercises.

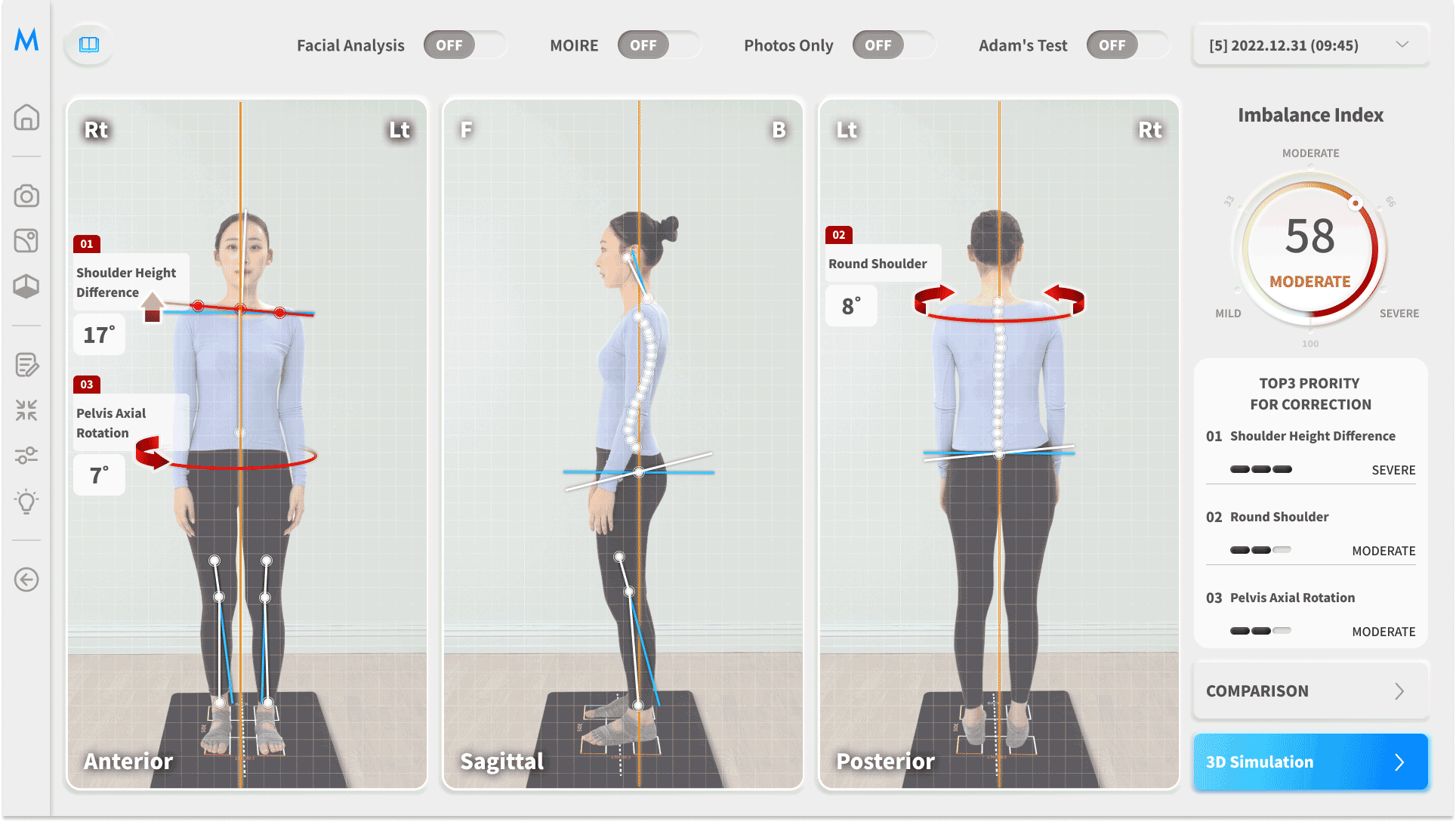

1. Score Screen

• Displays the overall imbalance score and the Top 3 imbalanced areas along with their angles.

2. Posture Analysis: Detailed Features

• Facial Analysis
  • Uses facial landmark data to measure facial asymmetry caused by facial displacement.
• Measurement Items:
  • Facial Midline: A vertical line drawn through the center of the face to assess vertical alignment imbalance.
  • Interpupillary Line: A line connecting the two eyes to assess the position and balance of the eyes.
  • Intercommissural Line: A line connecting the corners of the mouth to evaluate facial symmetry and dental midline deviation.


*Moti Physio’s Facial Analysis focuses on facial displacement caused by bone position changes or misalignments and does not provide muscle analysis for the face.

• Moiré
  • Visualizes the body’s contours with color, allowing users to identify postural imbalances. This helps in intuitively analyzing left-right asymmetry or body distortions.

• Photos Only
  • Displays only front, side, and back photos without angle information, enabling practitioners to focus on the overall posture during consultations for posture correction.

• Adam’s Test
  • Evaluates spinal asymmetry and deformities through upper body bending posture, which helps in analyzing spinal misalignments.

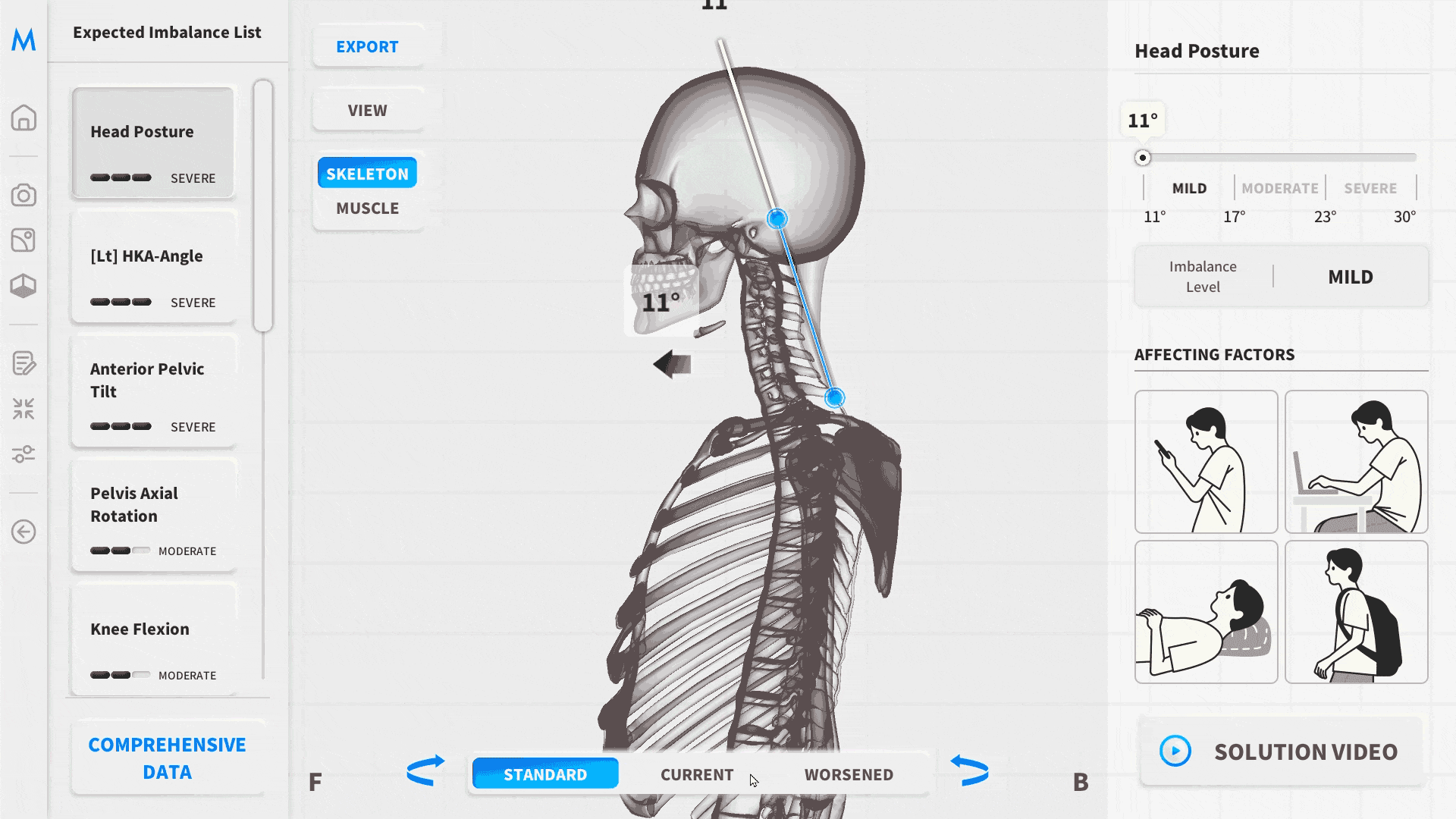

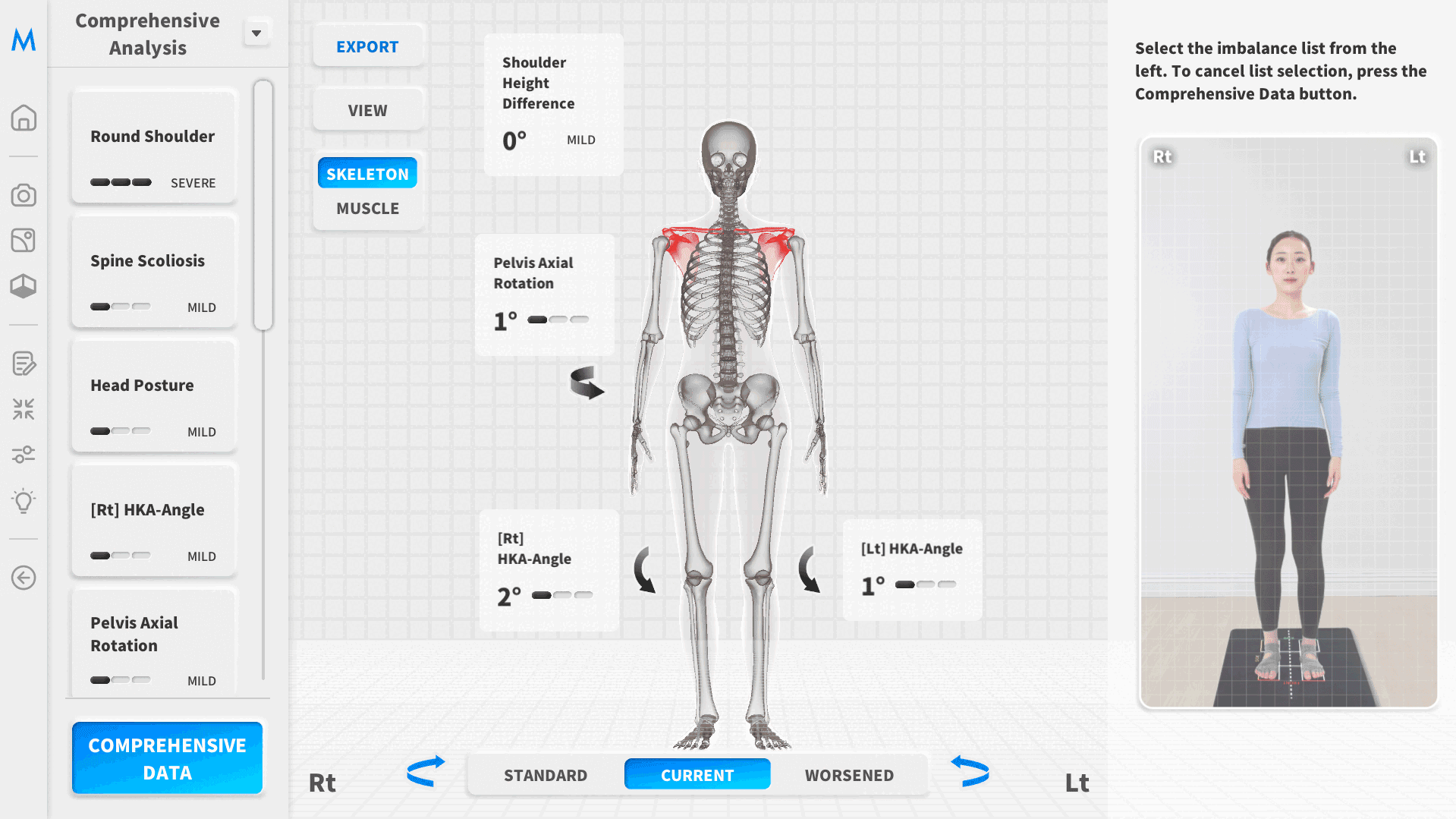

3. 3D Simulation

• Imbalance List:
  The imbalance list on the left side of the screen displays imbalances from the most severe to the least severe. By clicking on each item, users can move to the specific area in the 3D screen for detailed posture analysis.
• Skeleton Mode:
  In Skeleton Mode, posture imbalances are visually analyzed through a 3D skeleton model. The areas highlighted in red indicate a greater degree of imbalance.
• Muscle Mode:
  In Muscle Mode, muscle tension is analyzed.
  Red represents tight muscles, and blue represents weakened muscles. The more intense the color, the more severe the condition.
• Standard, Current, and Worsened Simulation:
  Compares the ideal posture to the current state, visually identifying areas that need improvement.
  Shows how the imbalance will worsen if left uncorrected, emphasizing the need for immediate correction.

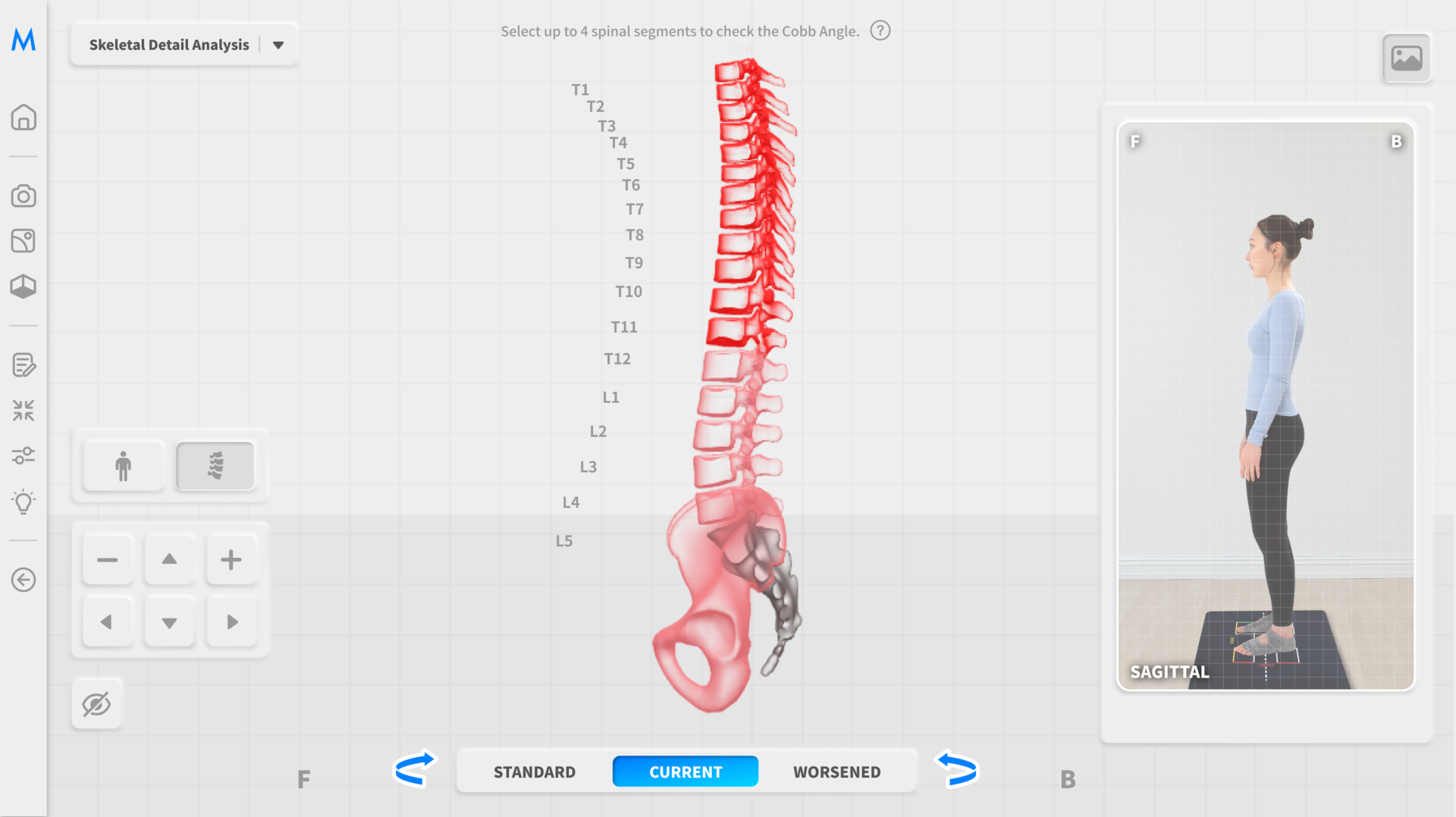

4. Spine Analysis Methods

• How to Select the Analysis Type
  • Click on Comprehensive Analysis from the imbalance list on the left side.
  • Select Spinal Detail Analysis from the dropdown menu to switch to Cobb Angle analysis.

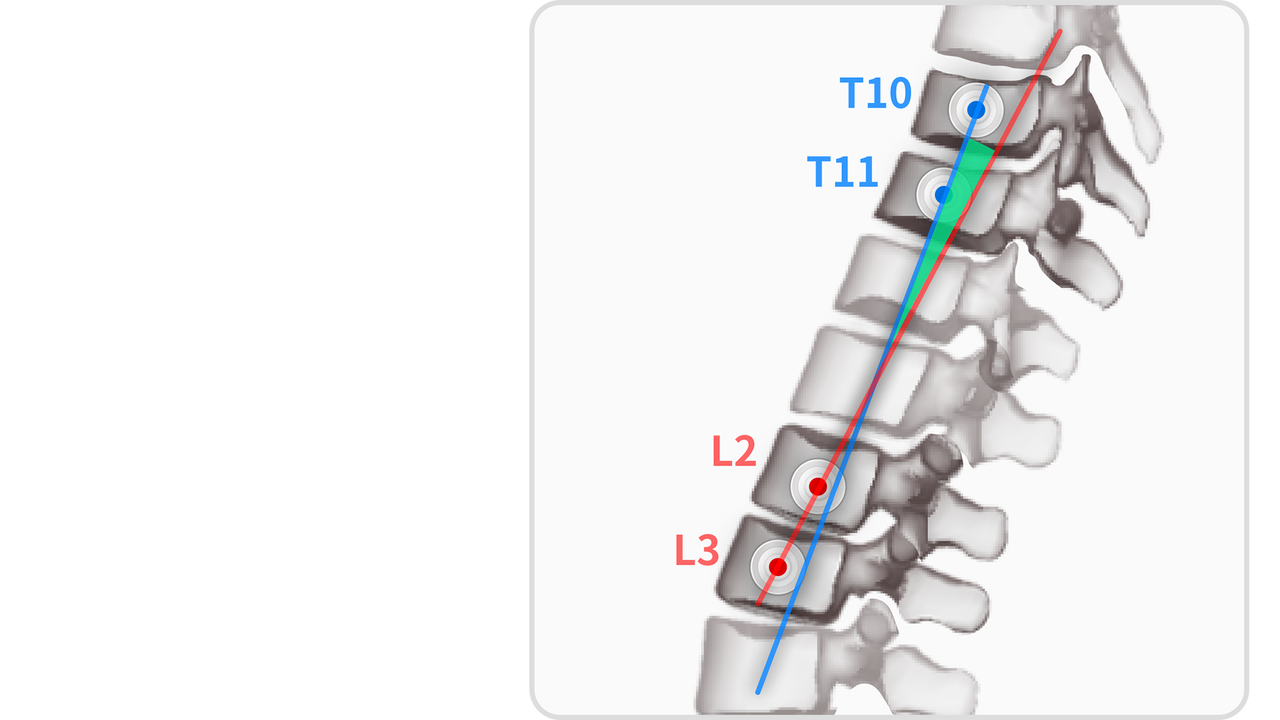

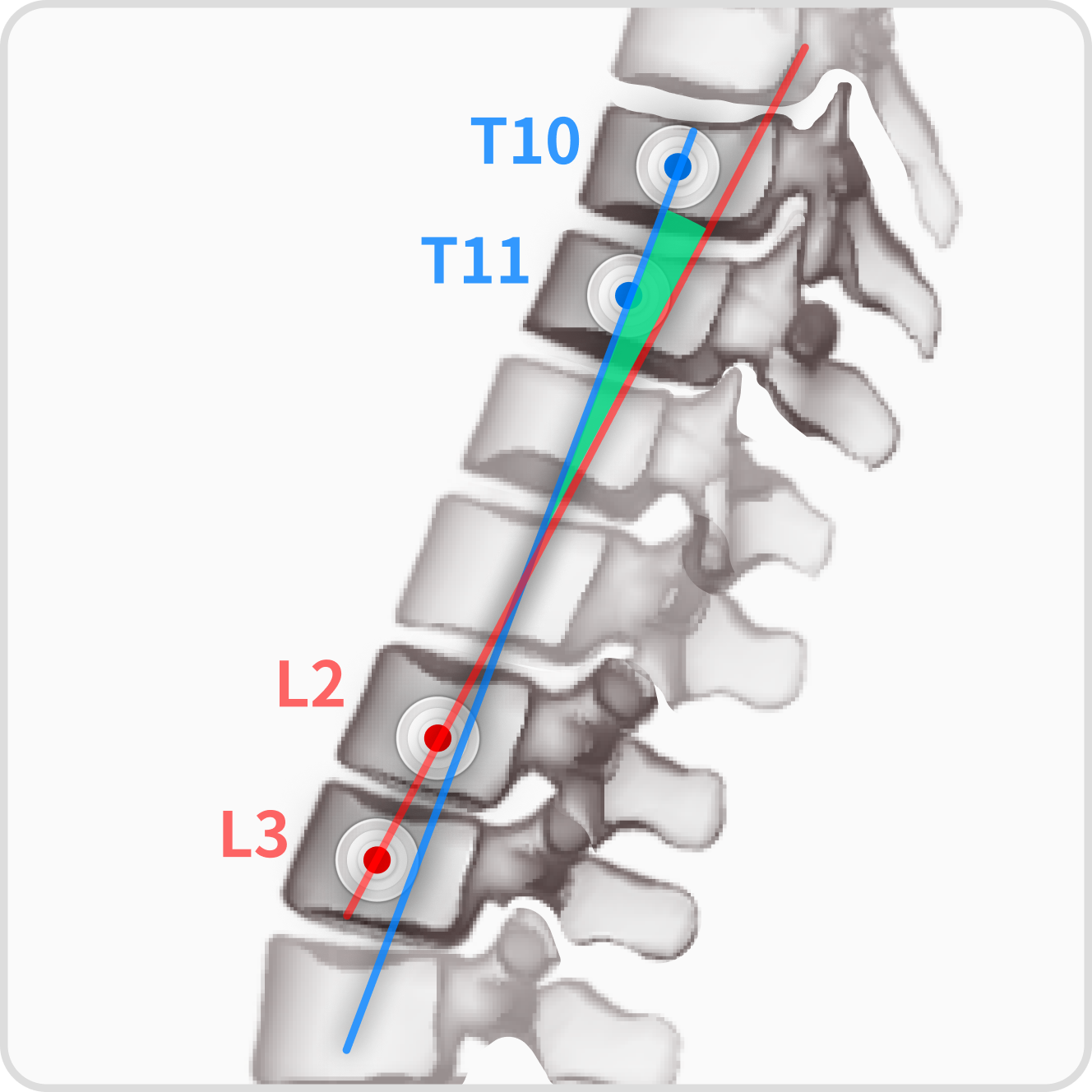

• VCM (Vertebral Column Measurement):
  VCM draws a line connecting the central points of spinal segments to measure overall spinal alignment. This method is ideal for assessing overall spinal balance and providing accurate spinal curve analysis.

• Cobb Angle:
  A widely used method for scoliosis diagnosis, Cobb Angle is familiar to users and commonly used for spinal curvature measurements.

• Result Sheet Extraction :
  Choose the result sheet type based on your needs.

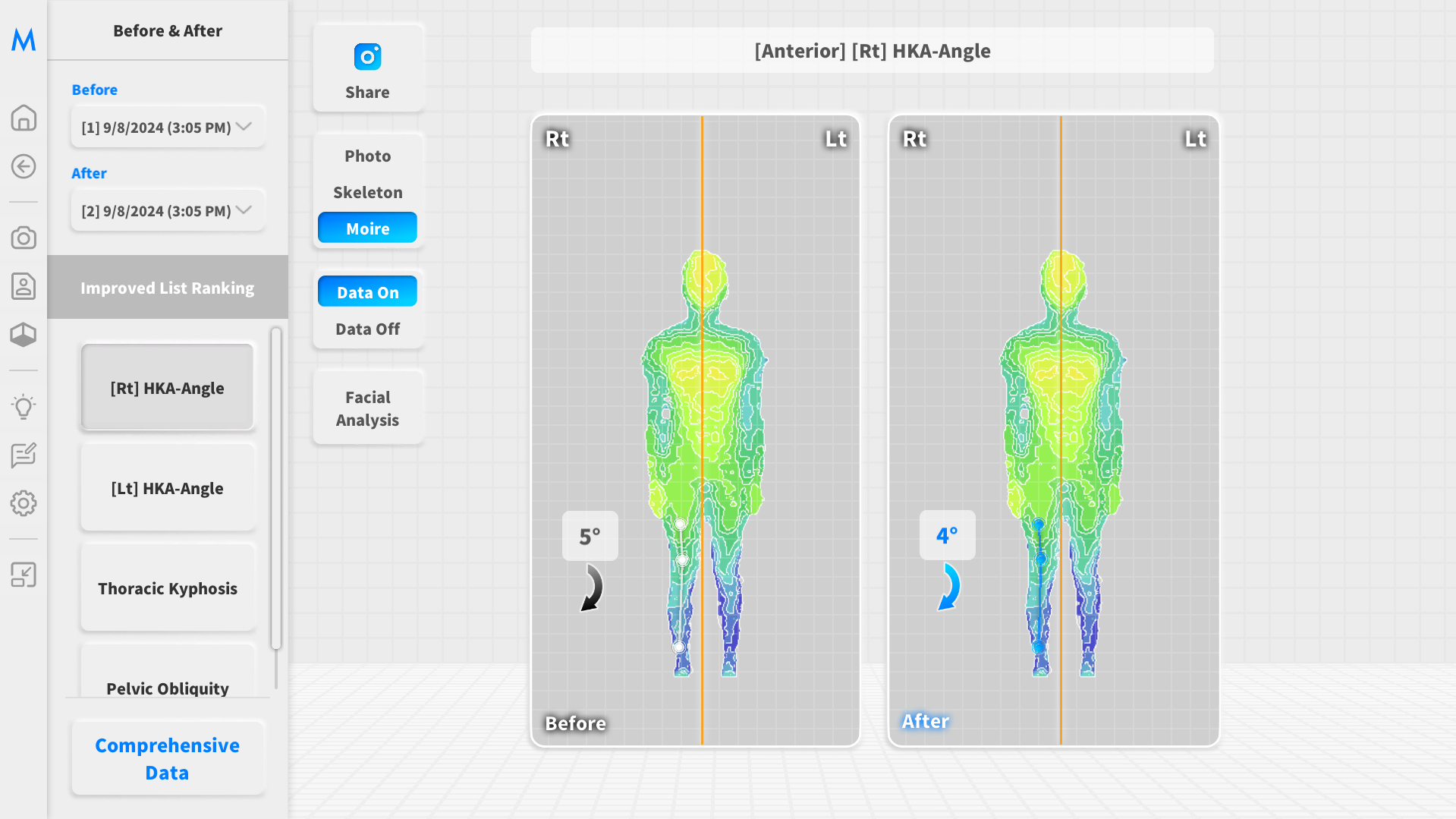

7. Compare Feature

• Use the Comparison feature to visually track improvements before and after care.

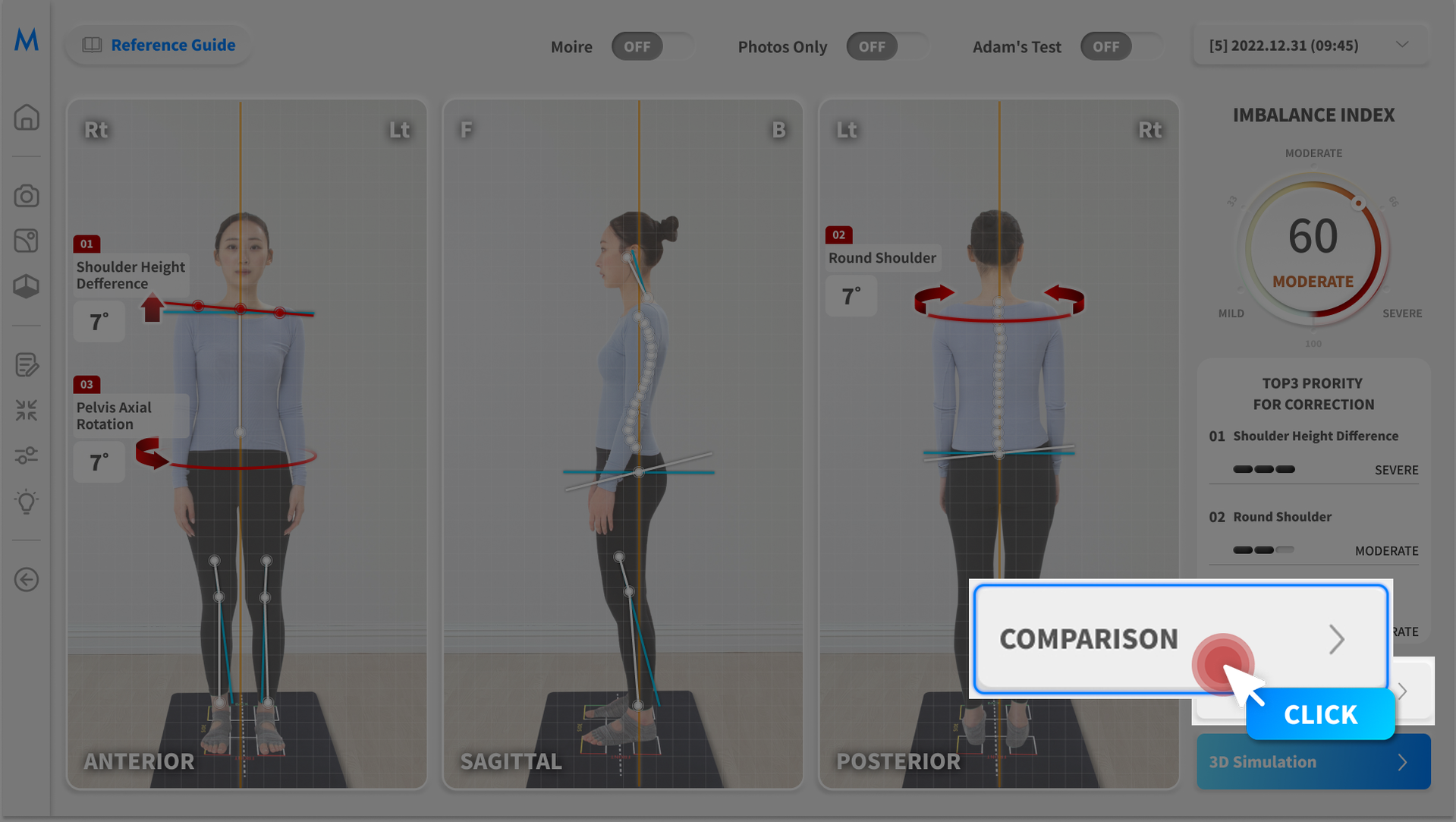

• Click [Comparison] on the score screen, then choose the before and after dates from the top-left corner.

🔹 Sorting and Visualization of Improvements

- Improved items are listed in order of greatest improvement.

- Only improved items are shown, making it easy to intuitively understand the user’s balance correction, helpful for clear and effective consultations.

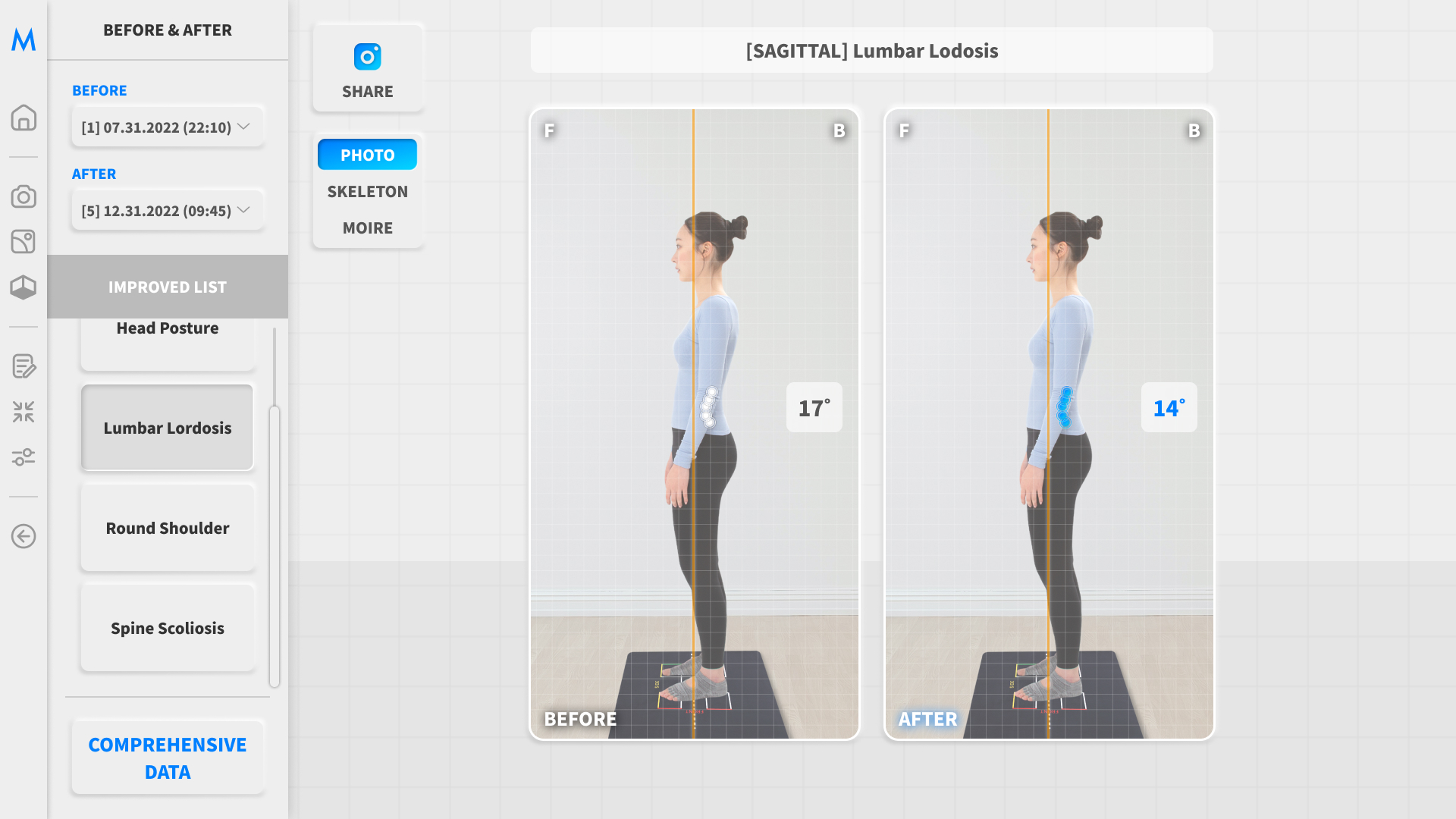

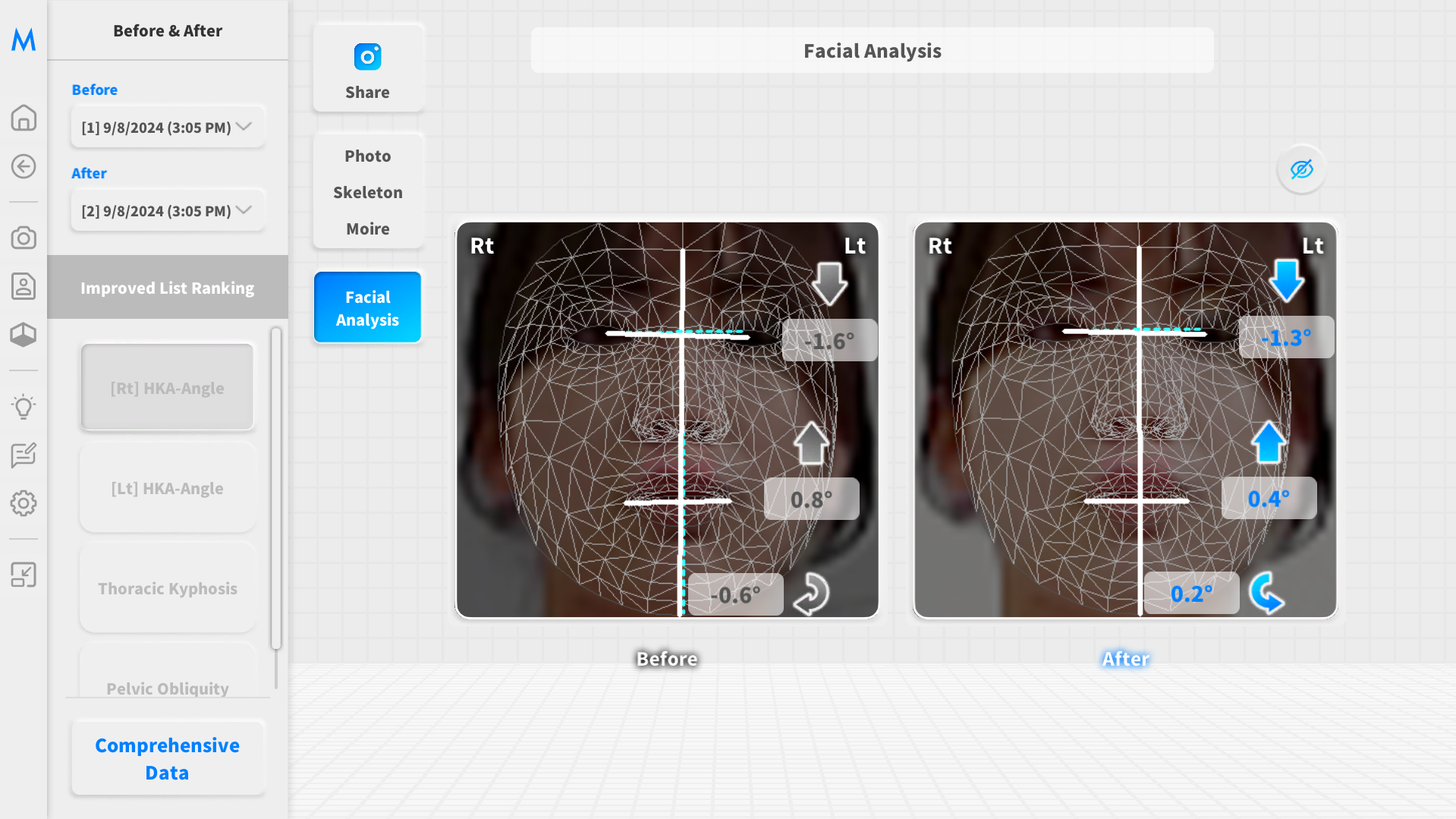

🔹 [Photo, Moiré, Facial Analysis View]

- Improved items and their angle values are highlighted in blue.

- This indicates that the angle has changed closer to the reference angle.

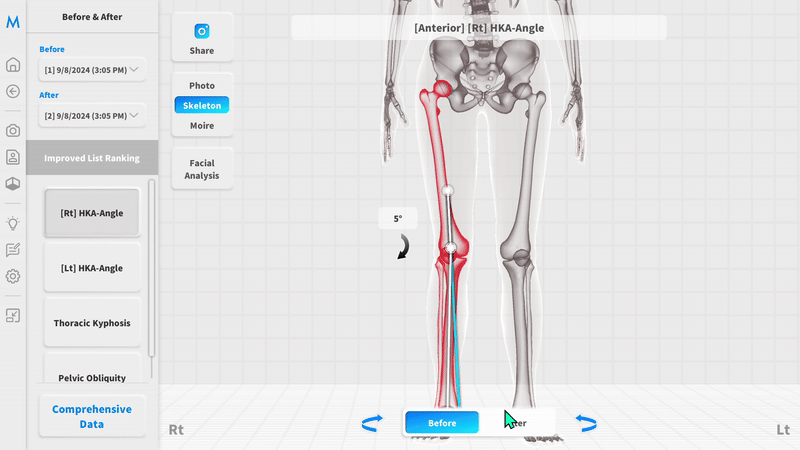

🔹 [Skeleton View]

- The 3D simulation automatically zooms in on the improved area.

- Click Before / After at the bottom to compare posture changes in that specific area.

- Users can visually recognize and better understand their posture improvements.

Core Function

Analysis Results

Analyzes overhead squat movements and provides a core imbalance index.

Counseling Tip:

• Compare the user’s squat movement with the avatar to highlight instability
  and raise awareness of issues.
• Explain that weak core muscles increase the risk of lower back pain
  and injury.
• Use visualized core function—compare the size and shape of the ellipse to that of the avatar for easier understanding.
• Identify causes—review the "Affecting Factors" on the right side of the screen.

• Click the ⓘ icon in the squat movement screen to check the reference angles
  for each body point.

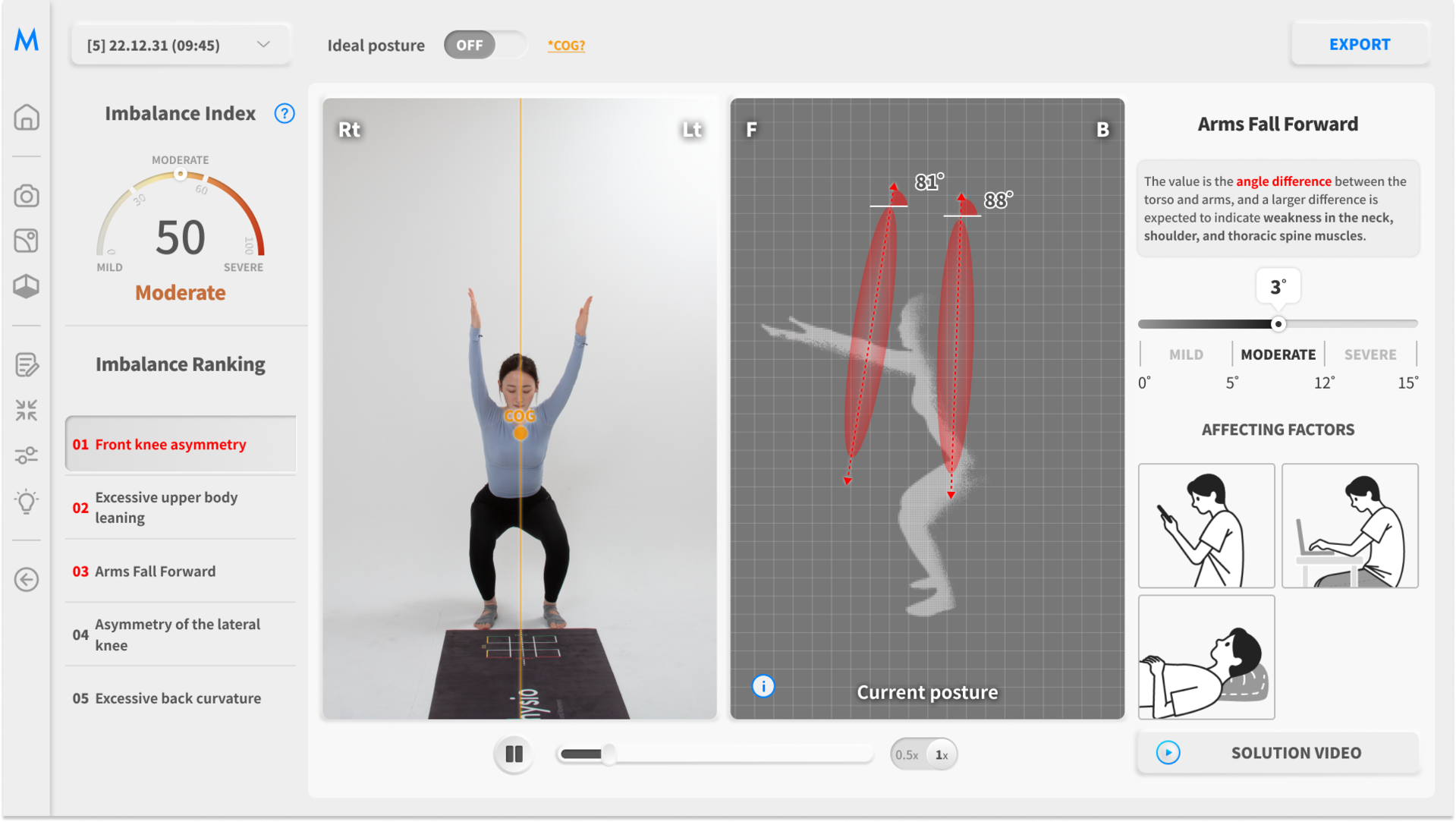

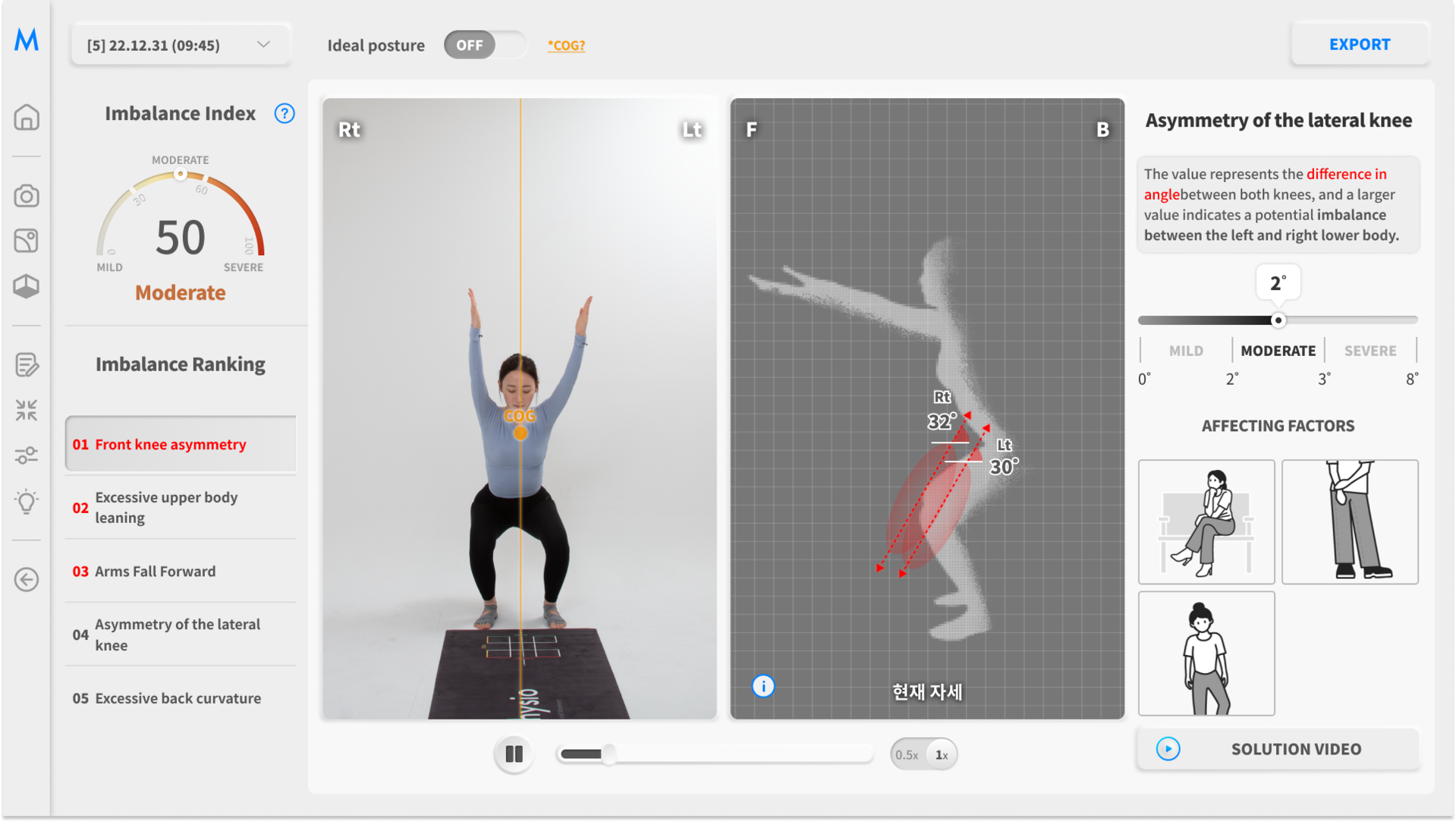

1. Display Definitions

• Screen Layout
  • Left: Movement video
  • Right: 3D view of the movement video
• Movement Video: View the actual movement video along with the center of gravity’s movement.
• [Ideal Posture] Button: Click to switch the movement video to an avatar showing the ideal posture
• Ellipse: Visualizes the movement path as a statistical ellipse (95% confidence interval).
• Ellipse Center Line: The major axis of the ellipse.
• Angle: The angle between the major axis of the ellipse and the horizontal line.

2. Reference Points

• Click the icon on the movement screen to check the angle reference.



3. Movement Evaluation Items

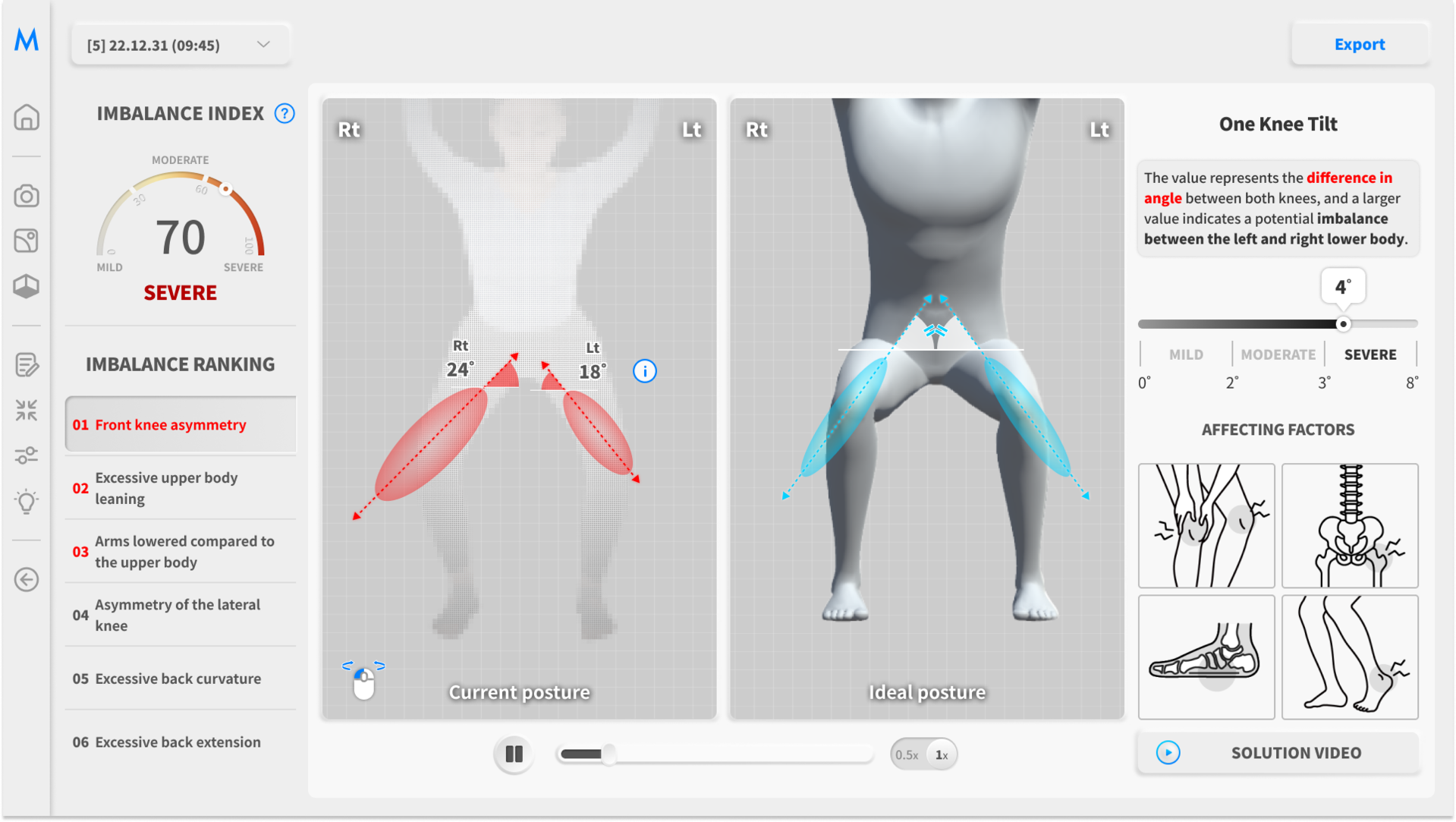

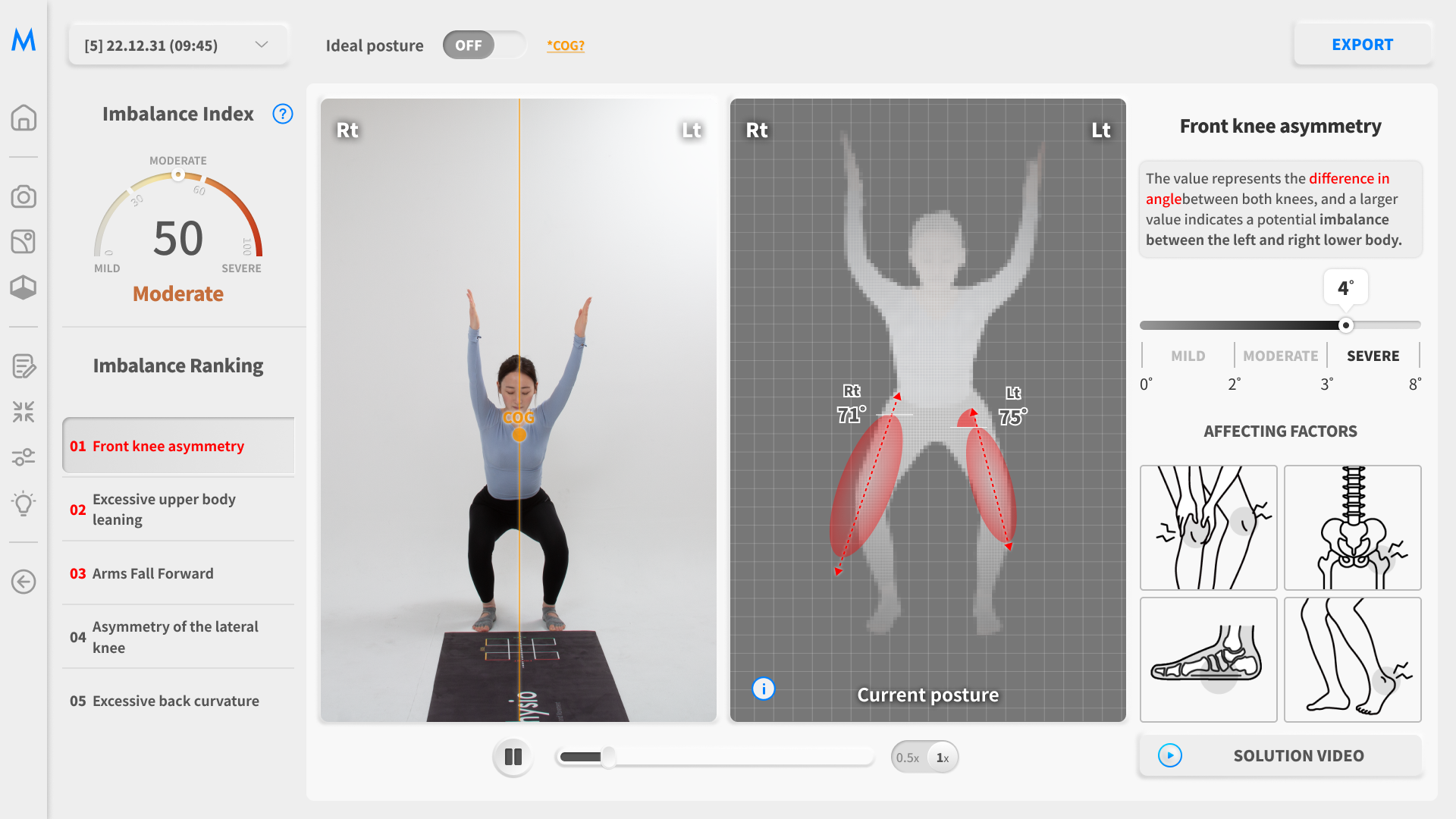

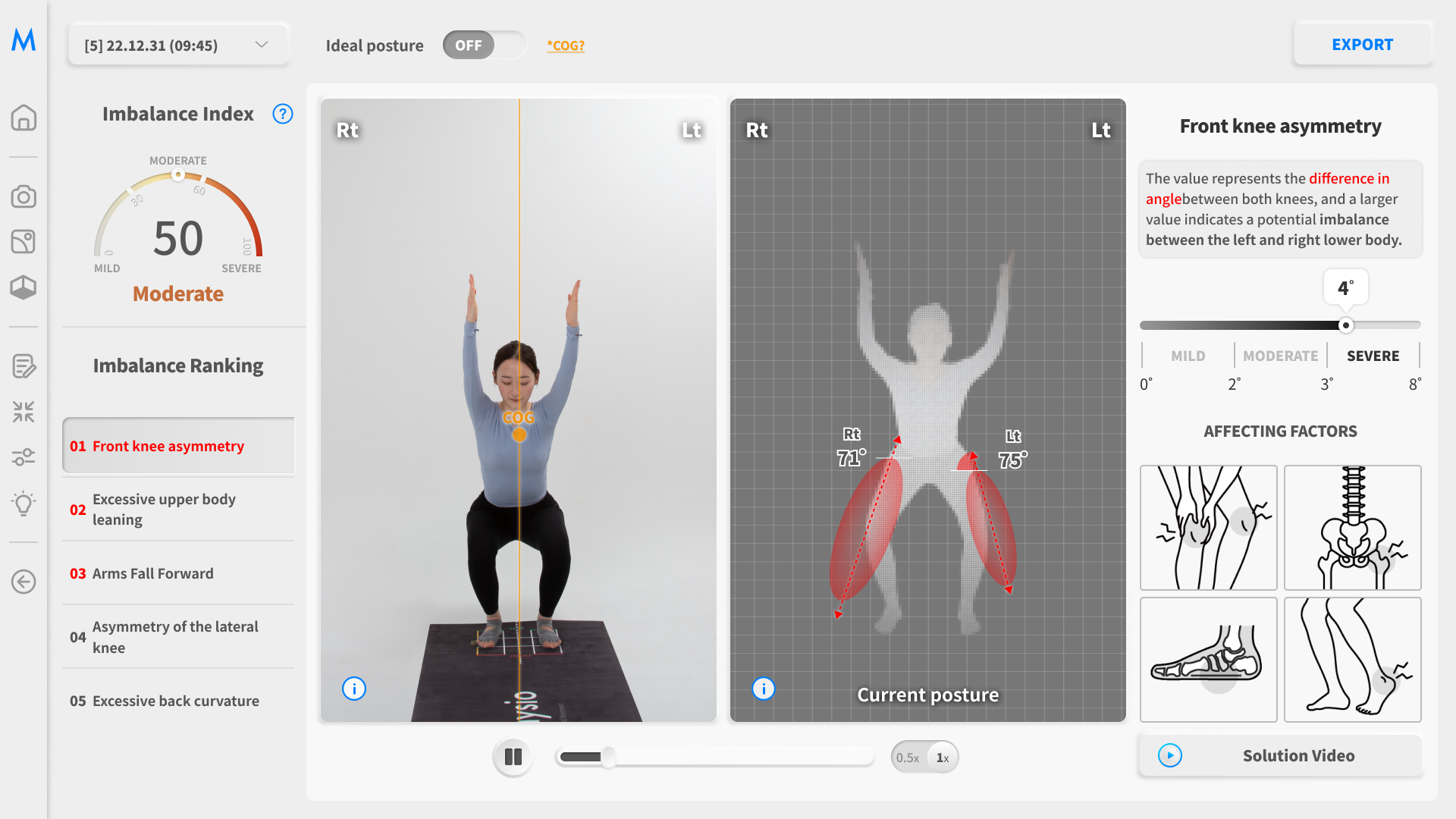

• Front Knee Asymmetry
  Measures the angle difference between the left and right knee points. Values closer to 0° indicate balanced alignment, while larger differences suggest lower body or pelvic imbalance.

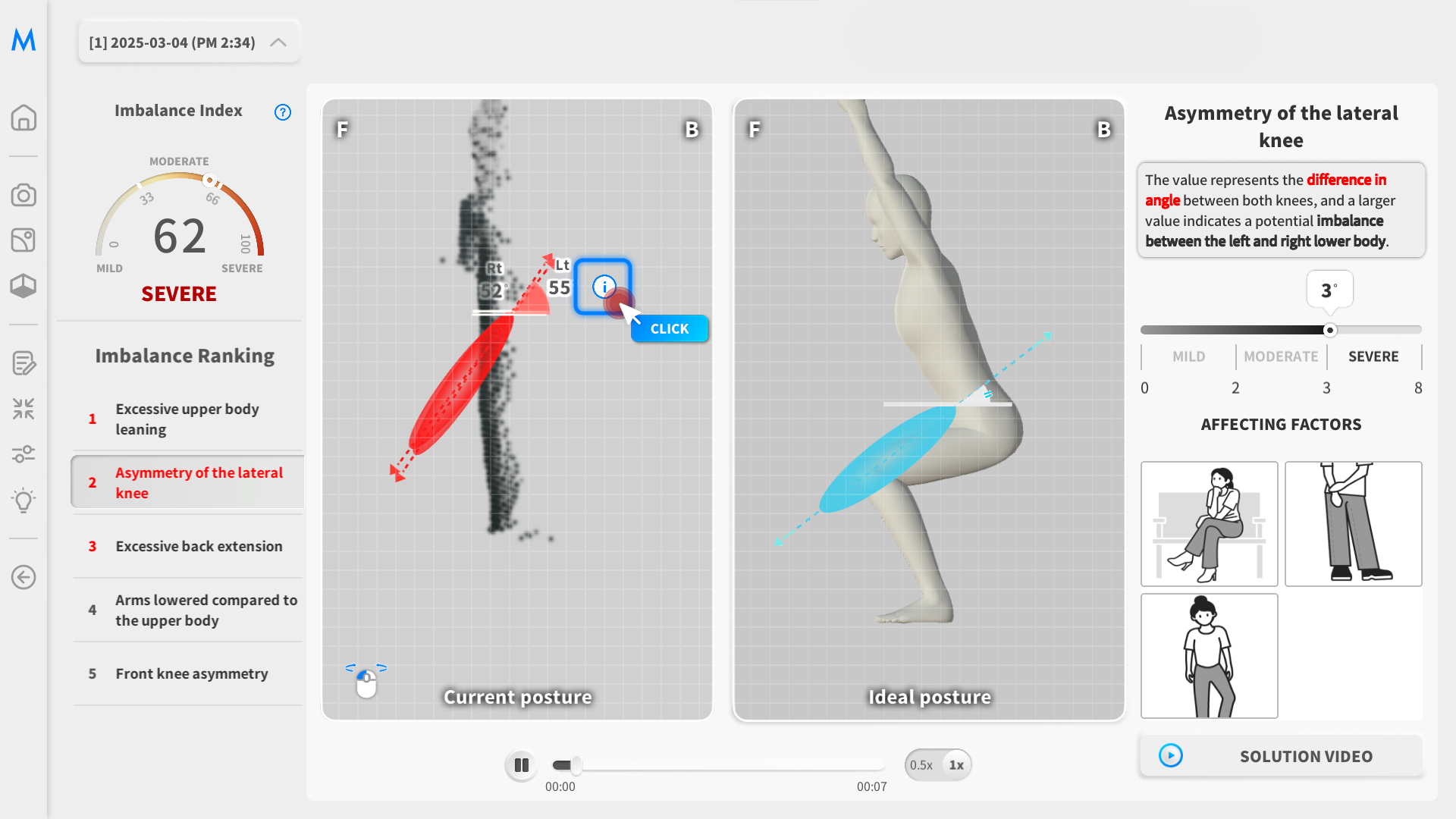

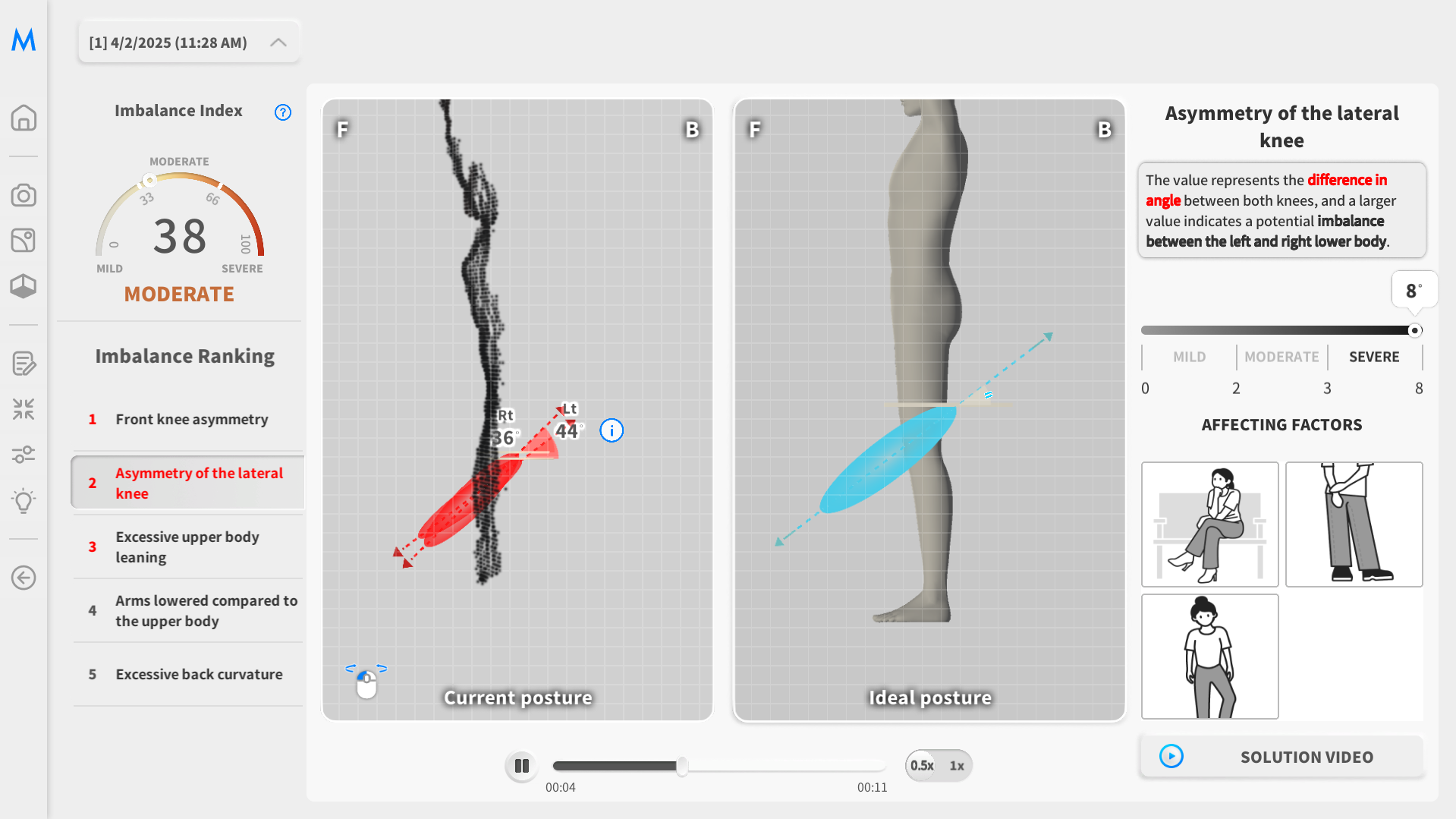

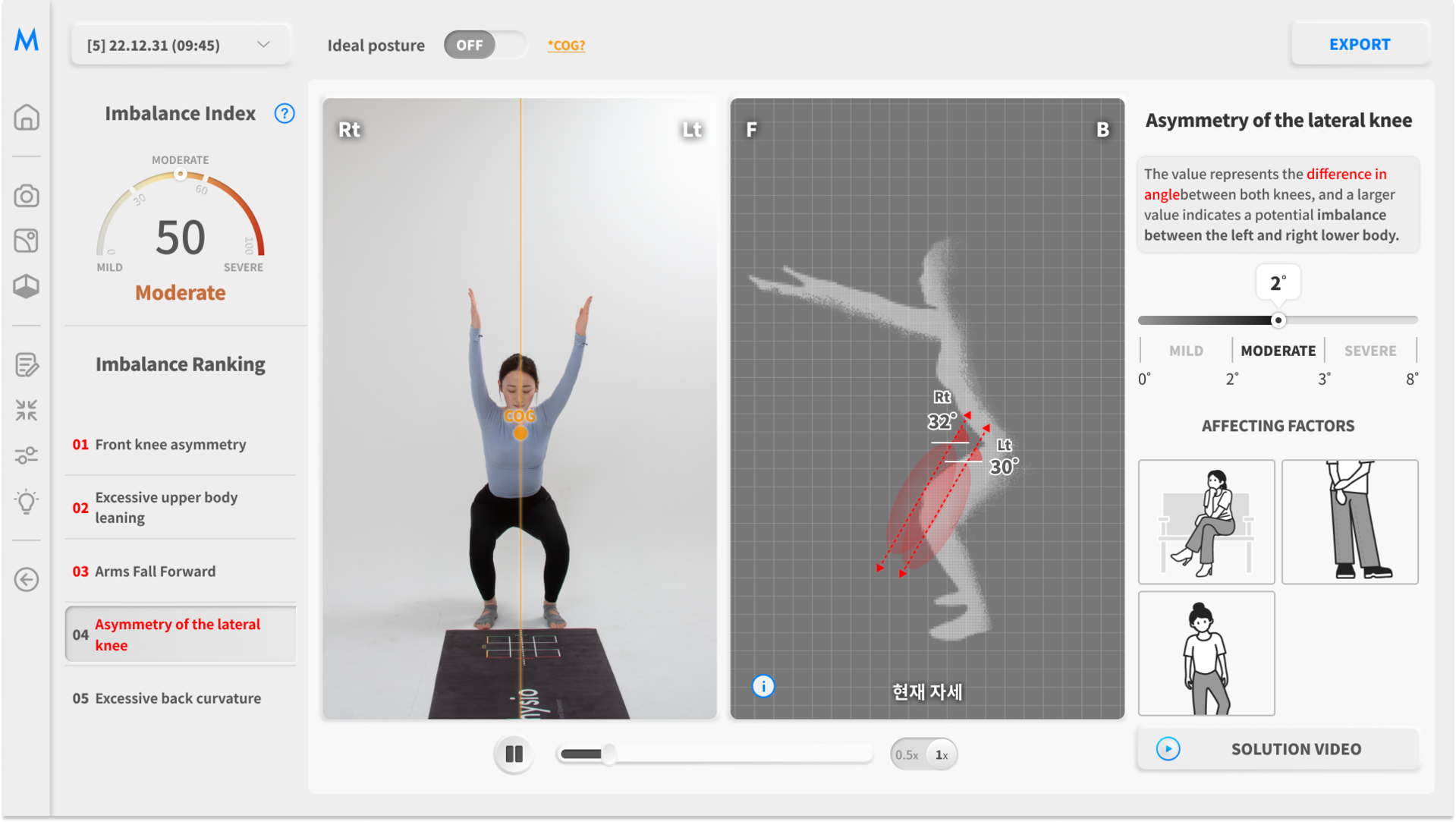

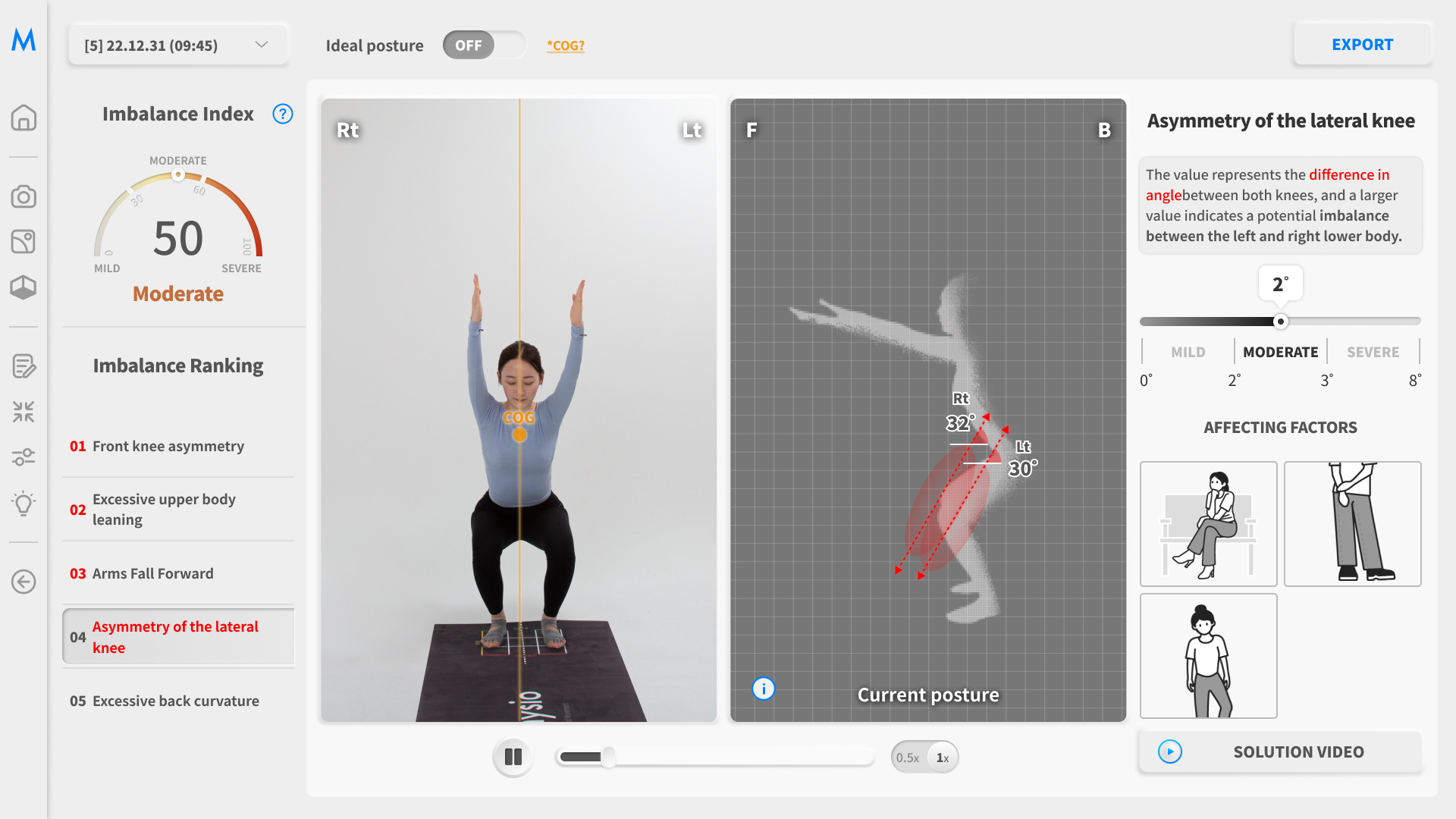

• Asymmetry of the Lateral Knee
  Measures the angle difference between the left and right knee points.
  Values closer to 0° indicate balanced alignment, while larger differences suggest lower body or pelvic imbalance.

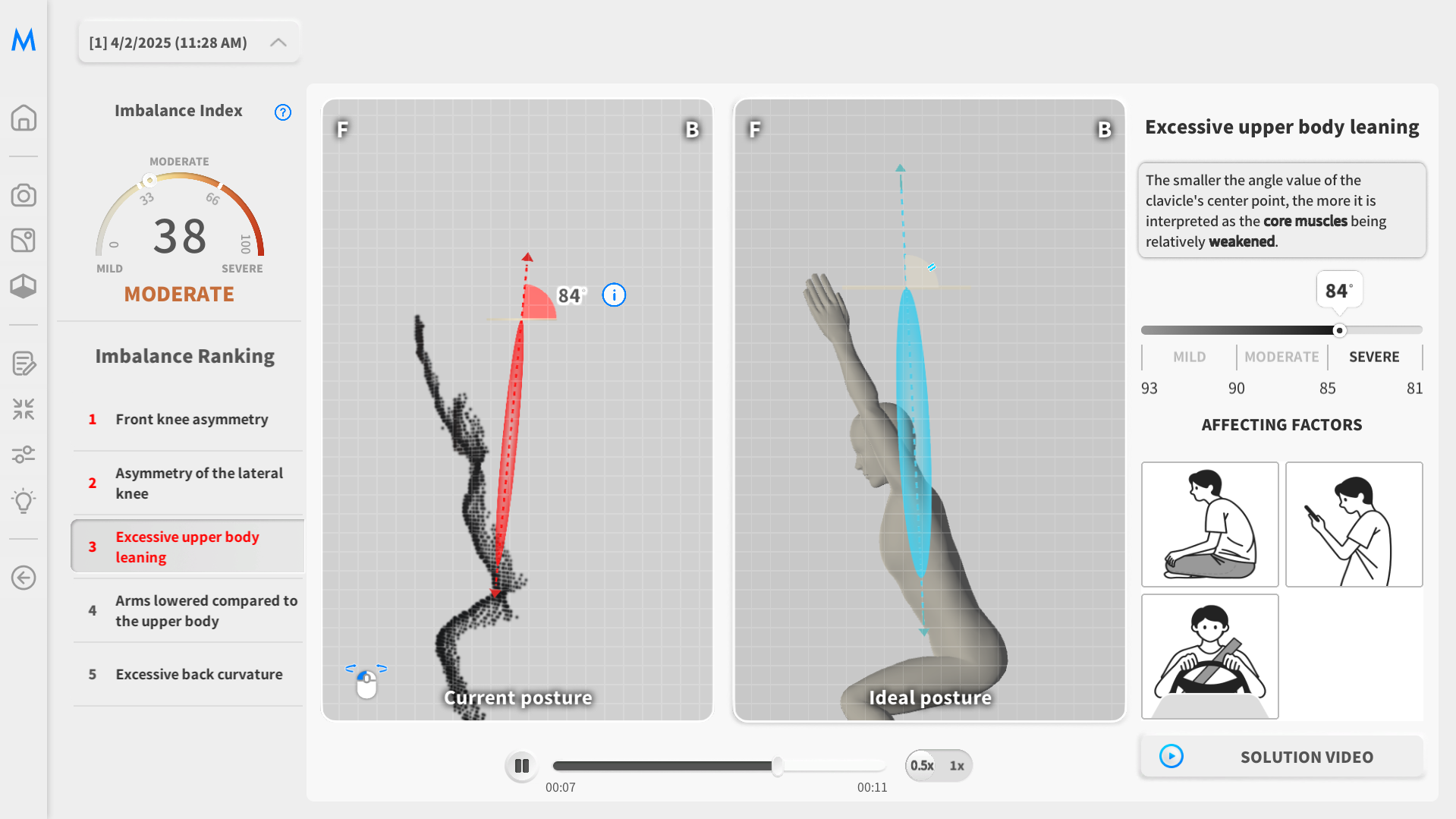

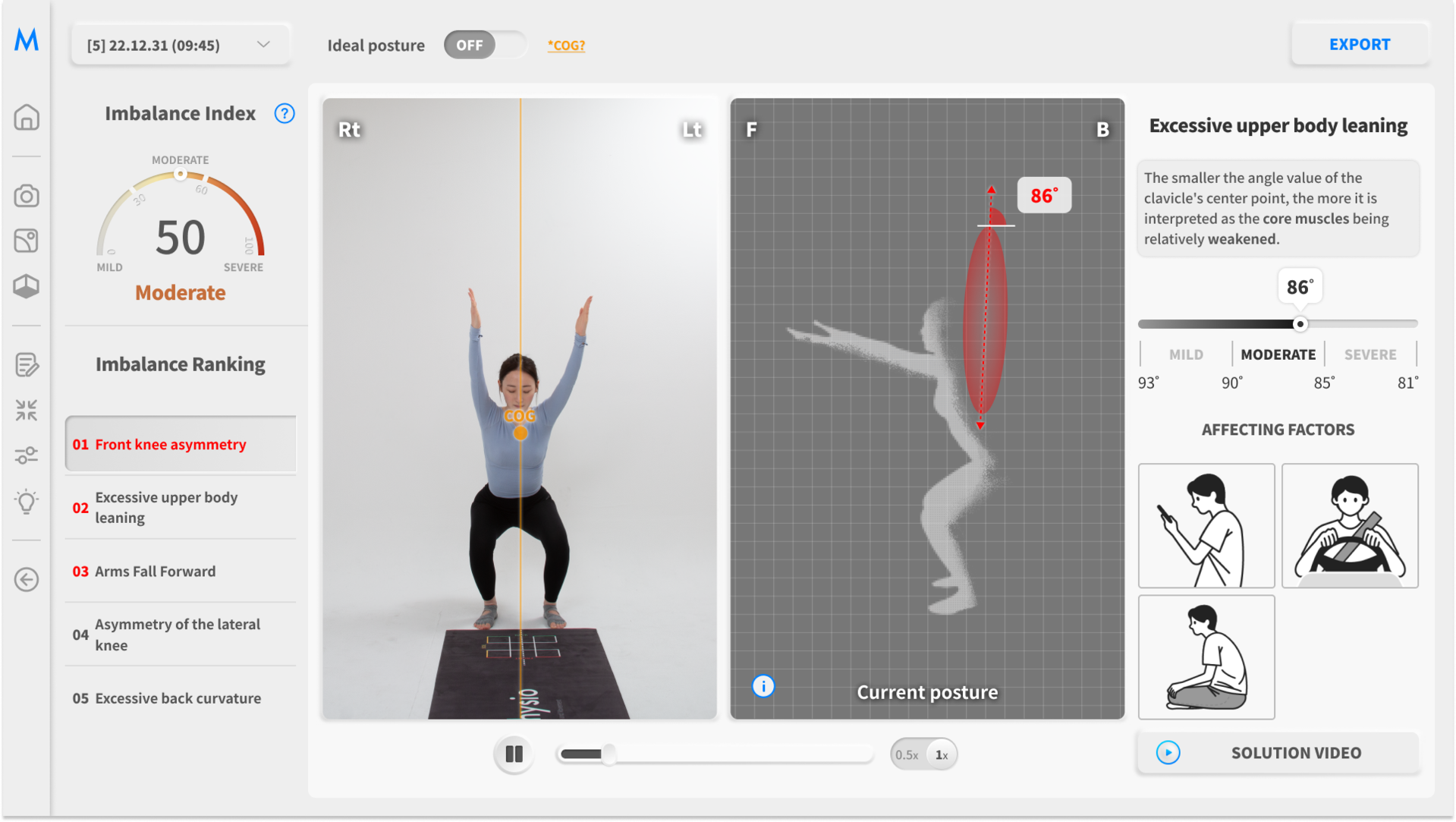

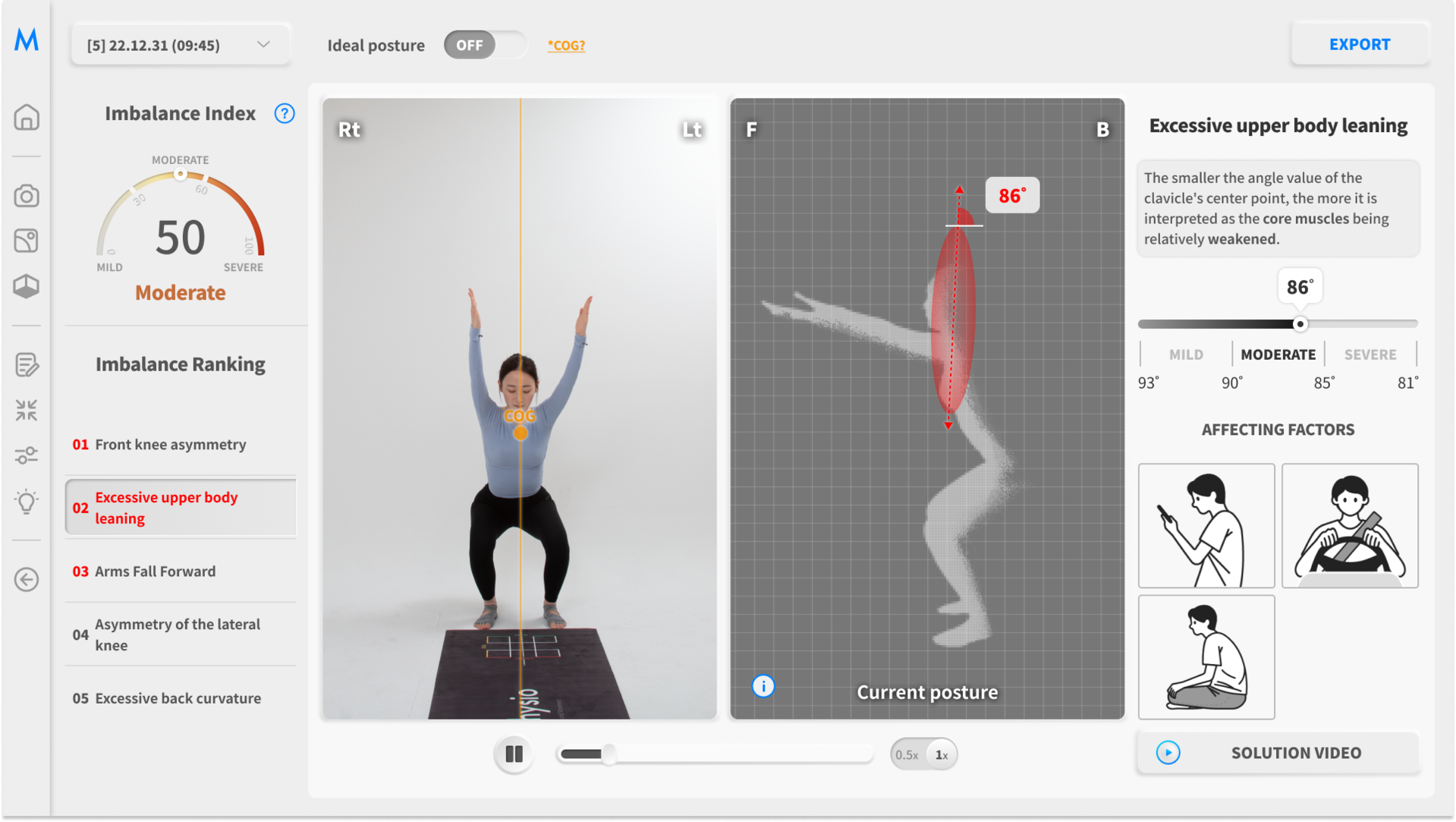

• Excessive Upper Body Leaning
  Represents the movement angle of the clavicle center (C7).
  93° is the ideal reference; a higher value may indicate weakened core muscles.

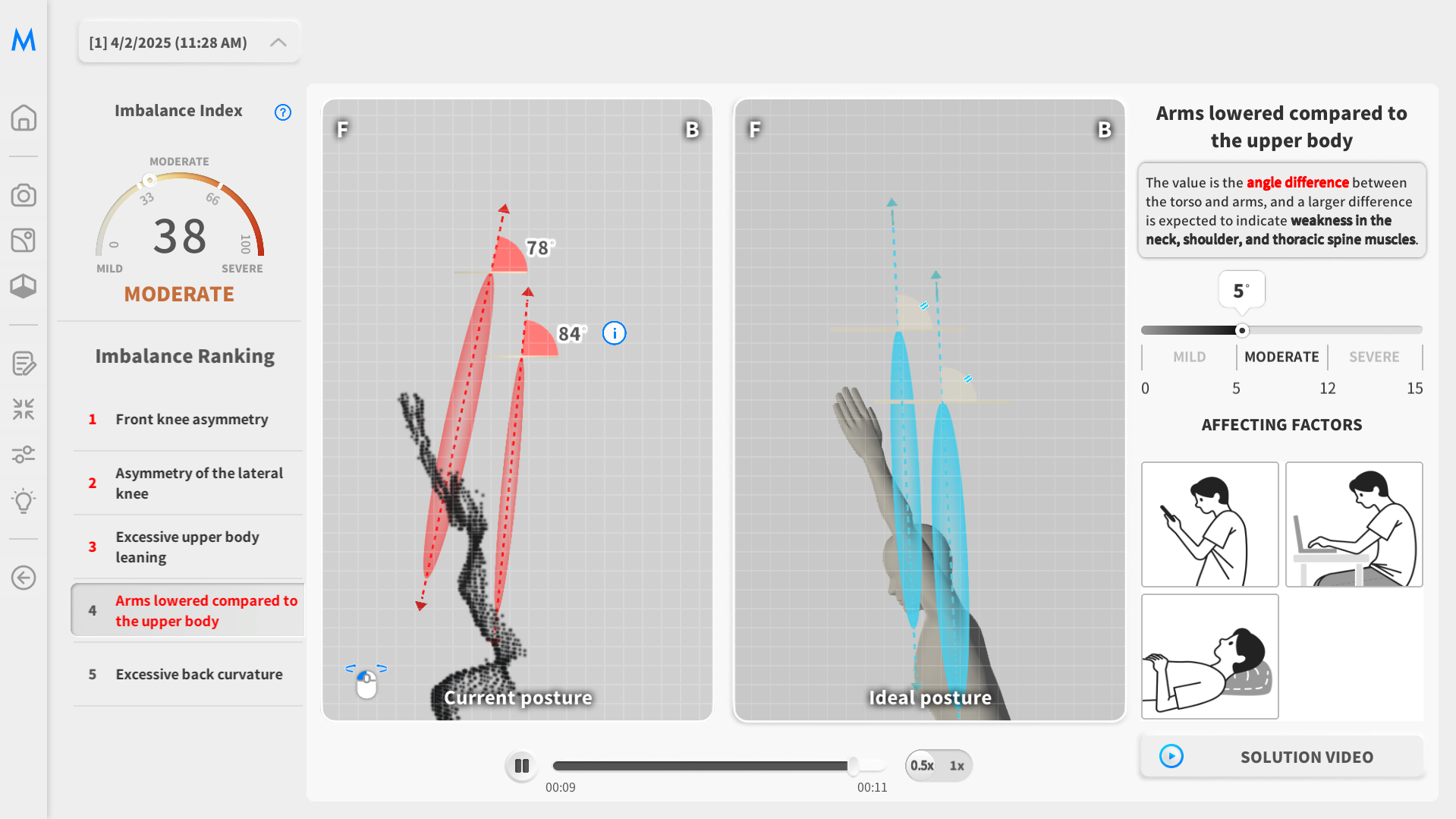

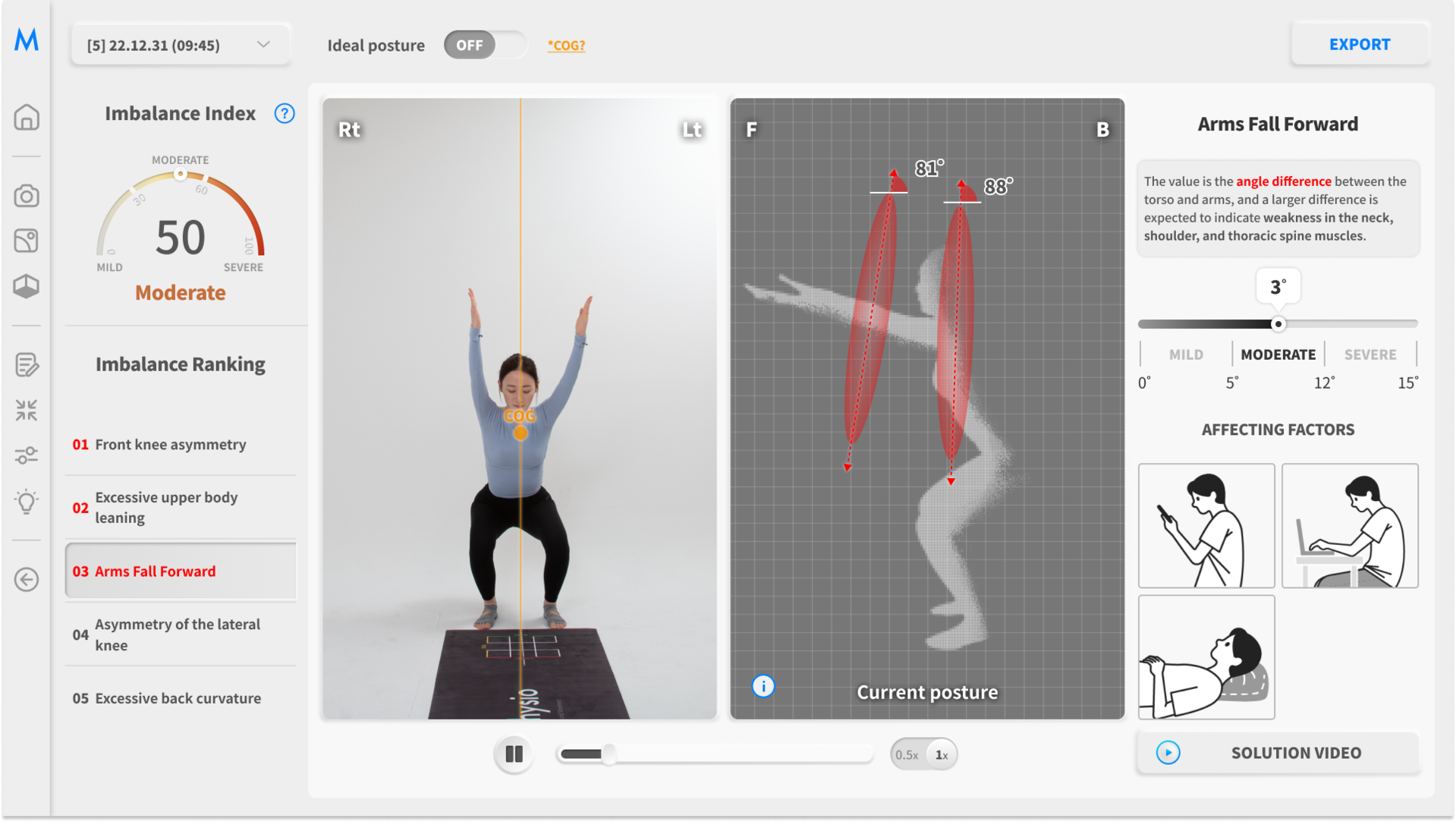

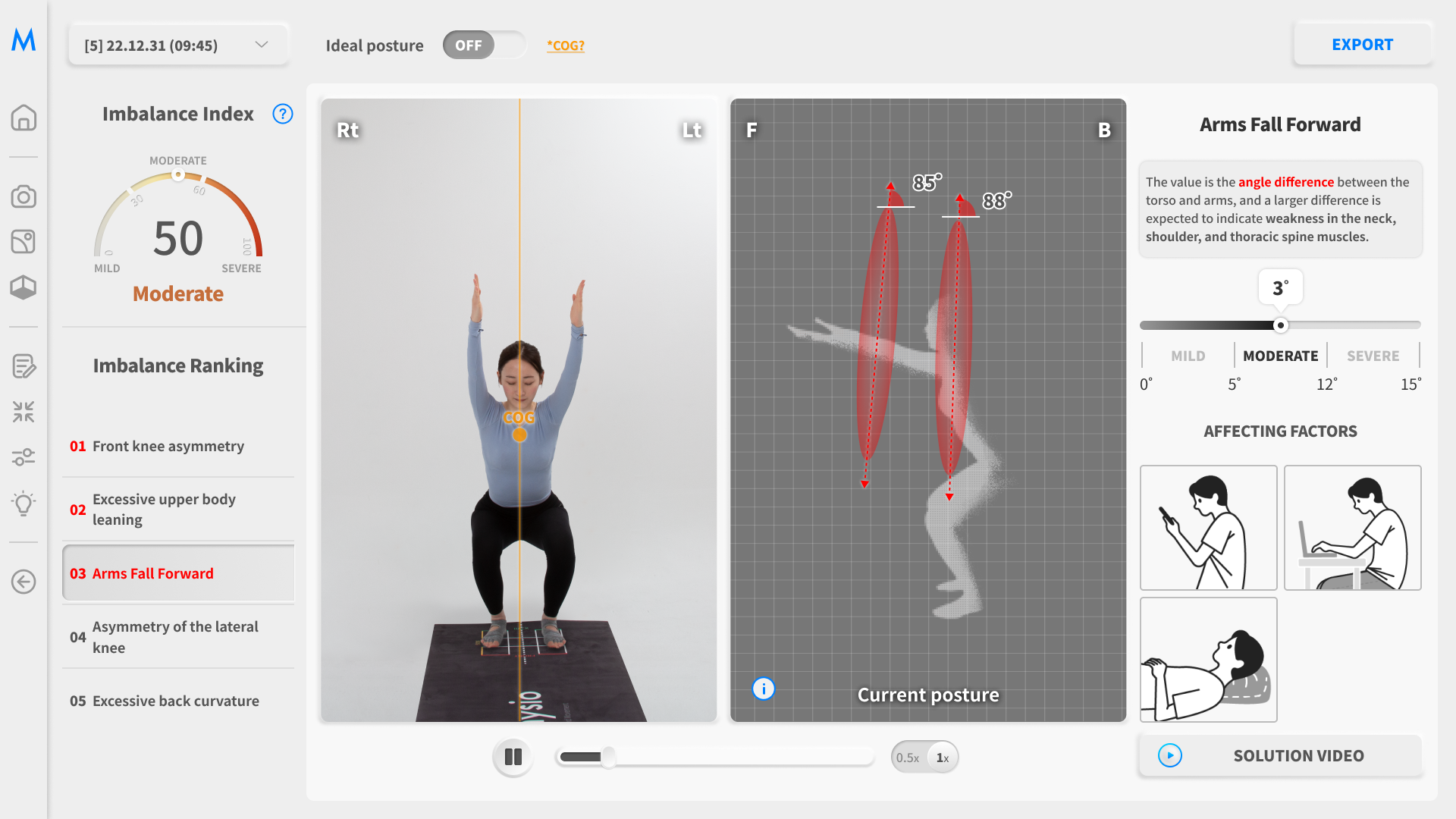

• Arms Lowered Compared to the Upper Body
  Measures the difference between the elbow point and the center of the clavicle (C7).
  Values closer to 0° indicate a normal range of motion with no upper crossed syndrome.

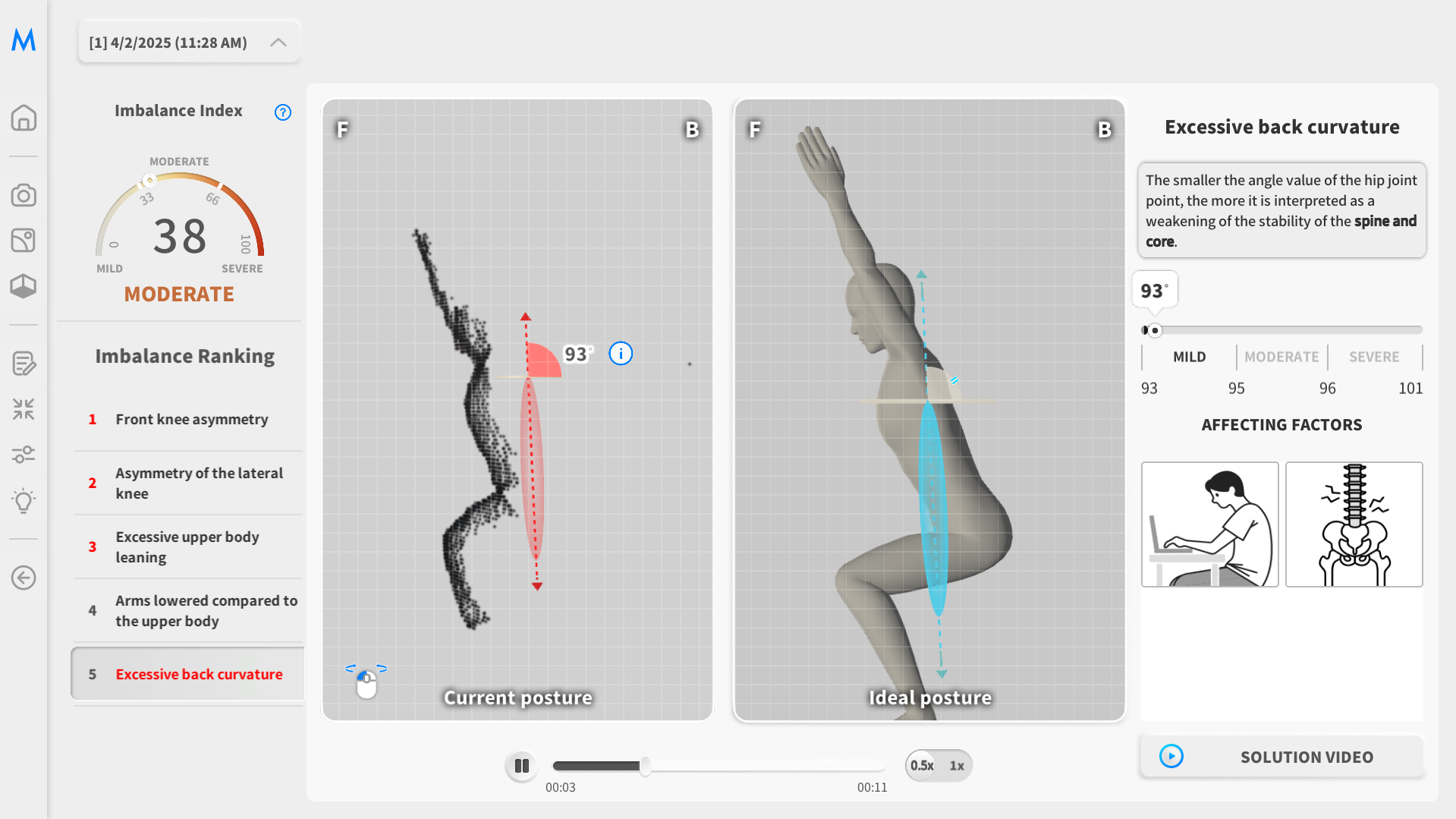

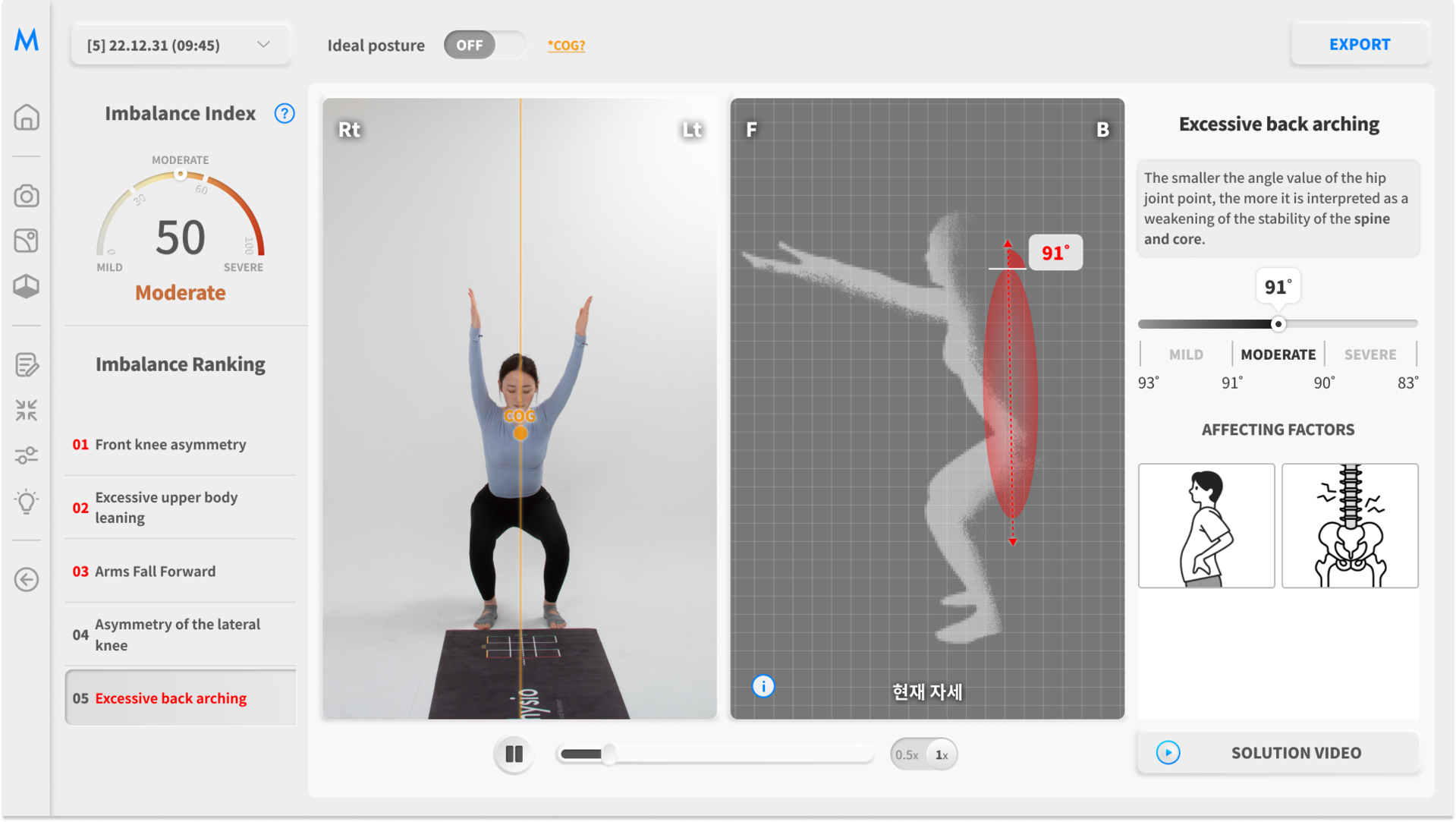

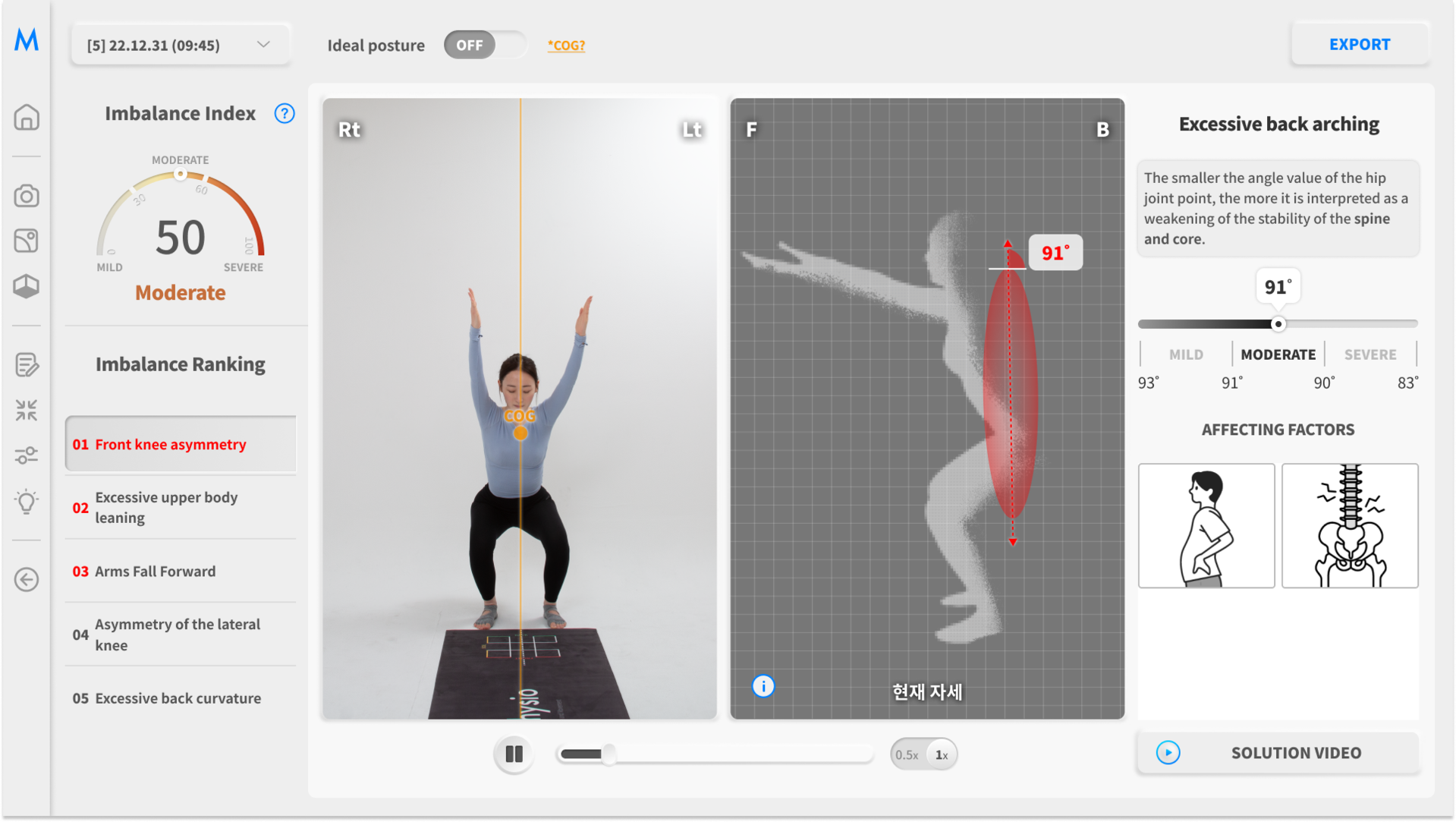

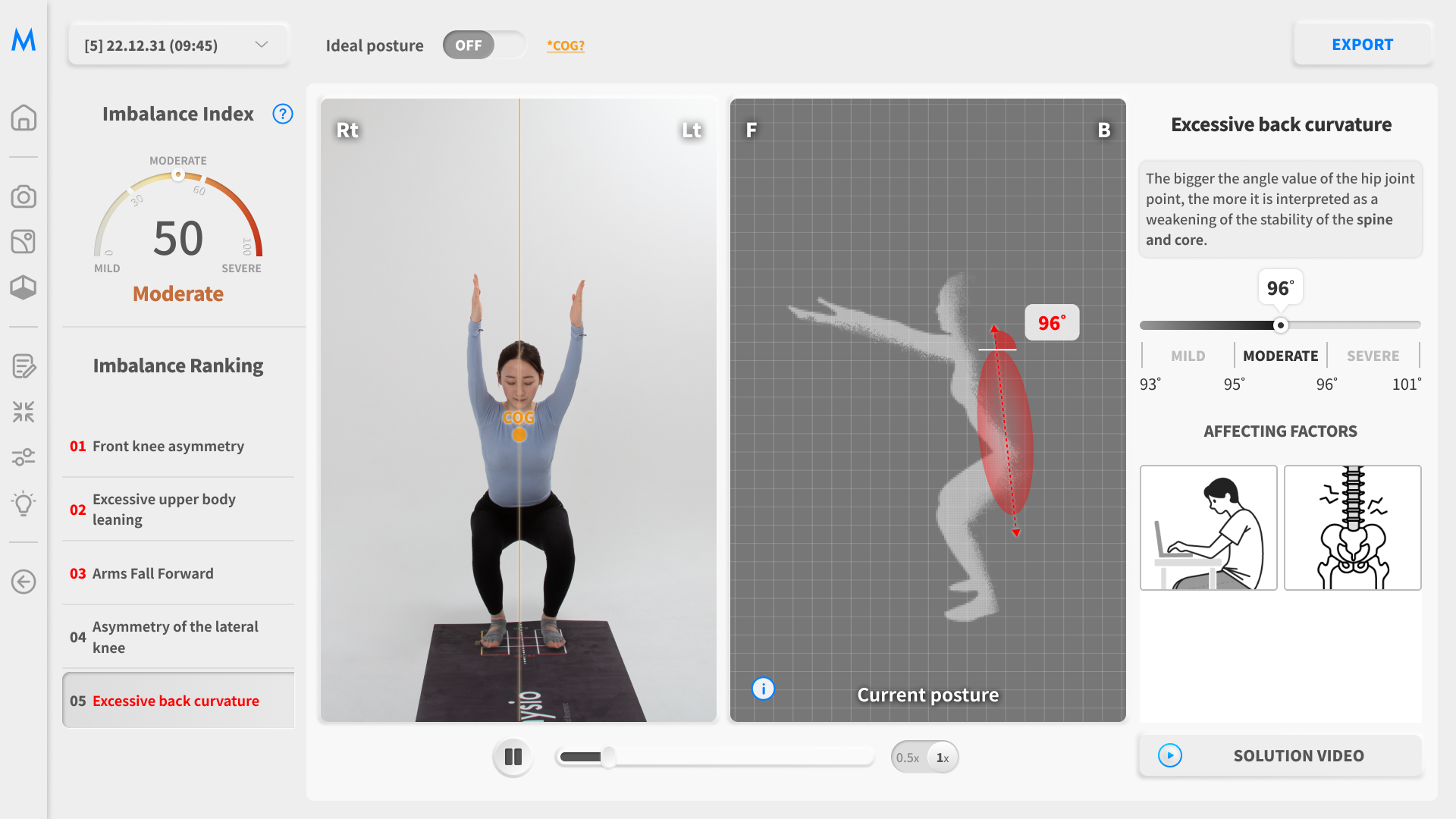

• Excessive Back Extension
  Measures the angle between the midpoint of the left and right hip points.
  93° indicates a stable spine and core.
  - Below 93°: lumbar flexion (forward bending).
  - Above 93°: lumbar extension (backward bending).

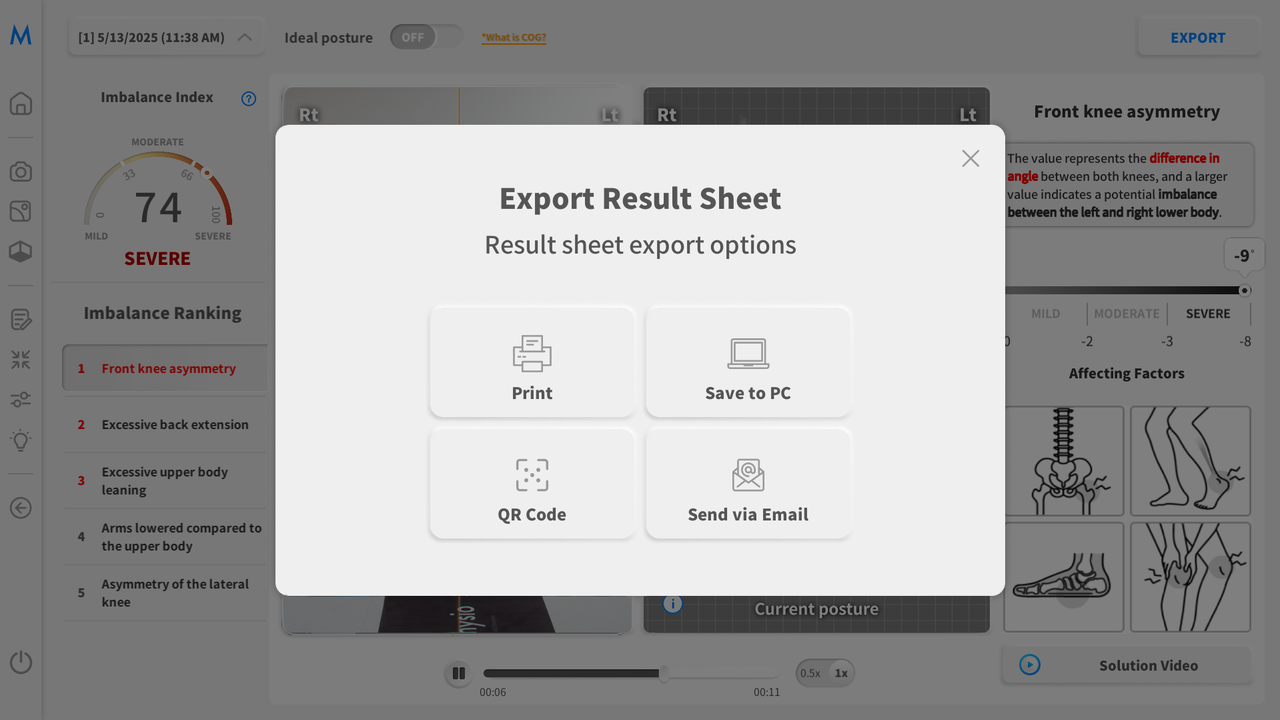

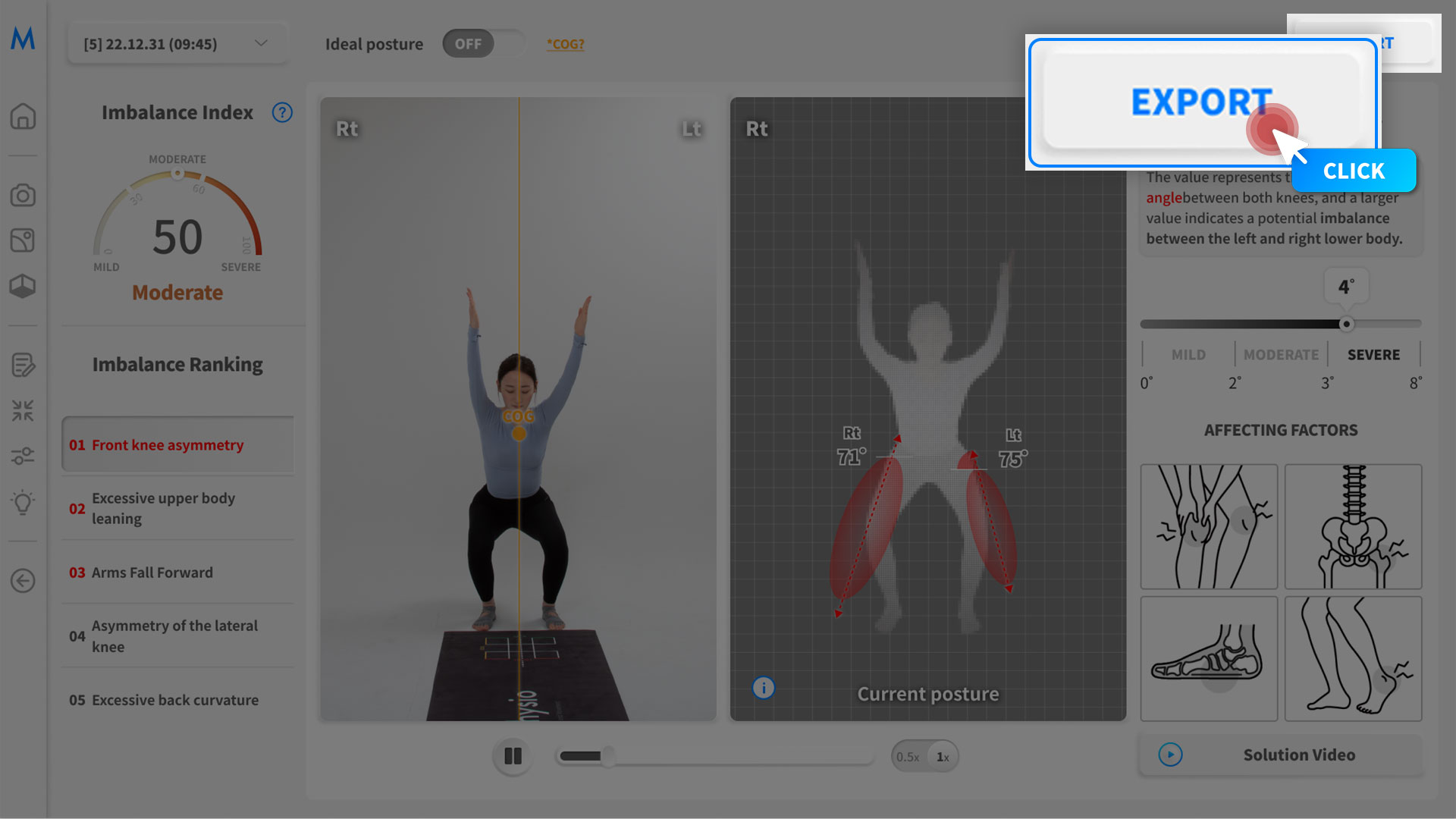

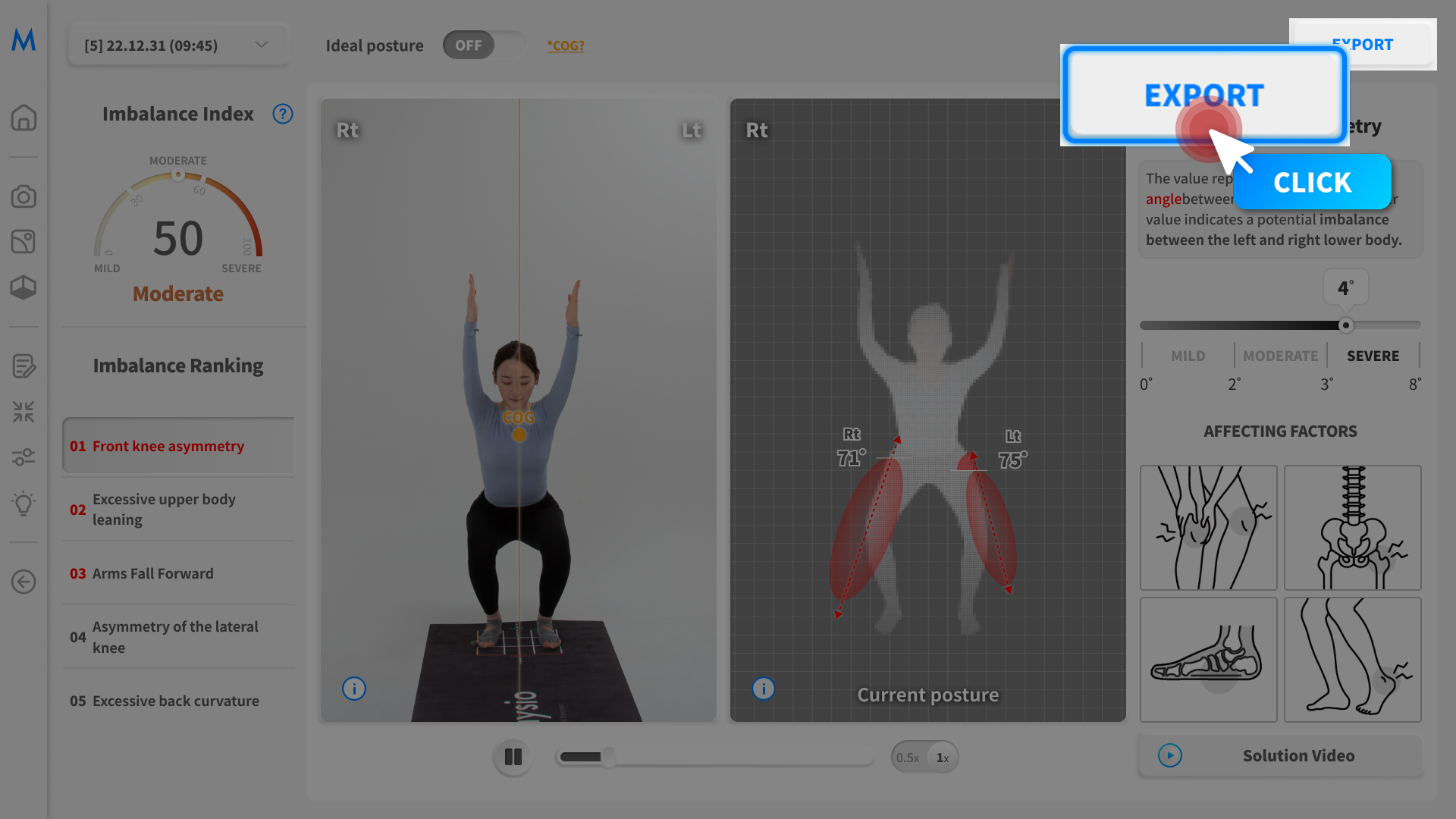

4. Result Sheet Extraction

• Use the result sheet during counseling, explaining with images of overactive and underactive muscles.
• Send the result sheet with the solution videos via email.
• Note:
  • Core function analysis is based on compensation patterns, which may differ from posture analysis results.
  • Overactive and underactive states are relative concepts, and depending on the condition,
    stretching or strengthening exercises may not always be necessary.
    Interpretation of these states requires professional judgment.

5. Result Sheet Sample

Balance Ability

Analysis Results

• The balance ability analysis provides
  left-right balance, movement coordinates, overall imbalance score,
  and the Top 3 risk factors.
• The one-leg standing test visually analyzes which areas contribute to balance issues.

Counseling Tip:

• Use real-time or recorded movement coordinates to explain balance issues.
  • Emphasize that higher imbalance scores indicate a greater risk of falls or joint problems.
  • Help users visually assess their balance control and stability.
• Explain the connection between daily habits and balance issues
  • Posture, walking habits, and weight distribution can all impact balance.
  • Example: Favoring one foot, improper walking patterns.
• Highlight the importance of balance training for improving overall physical performance.
  • Benefits of better balance:
    • Maintains proper posture, improving exercise efficiency.
    • Enhances core stability, optimizing power transfer.
    • Enables faster reaction to sudden changes during movement.
  • Explain that poor balance can increase fall risk and joint strain, making balance training essential for injury prevention and mobility.

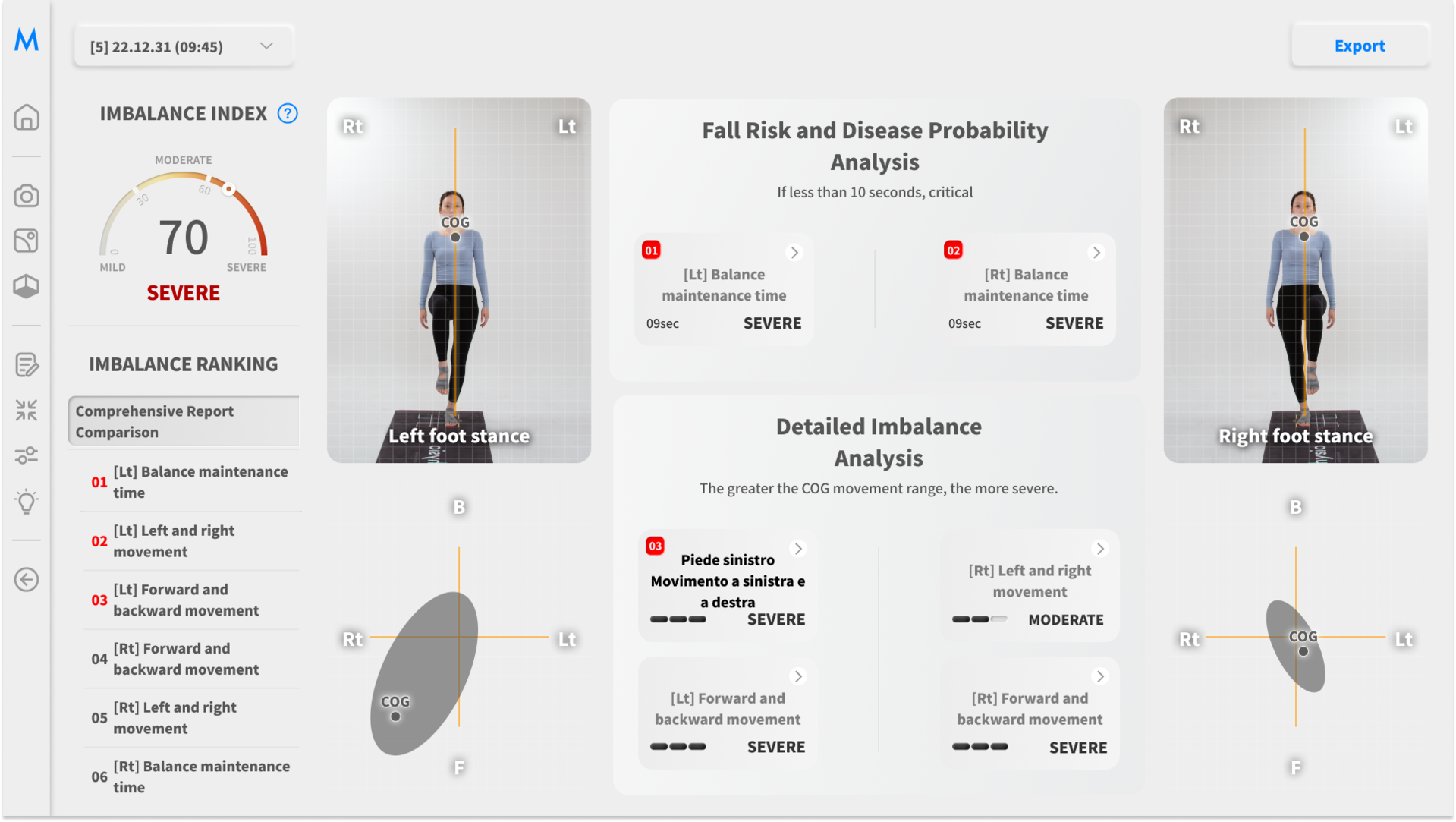

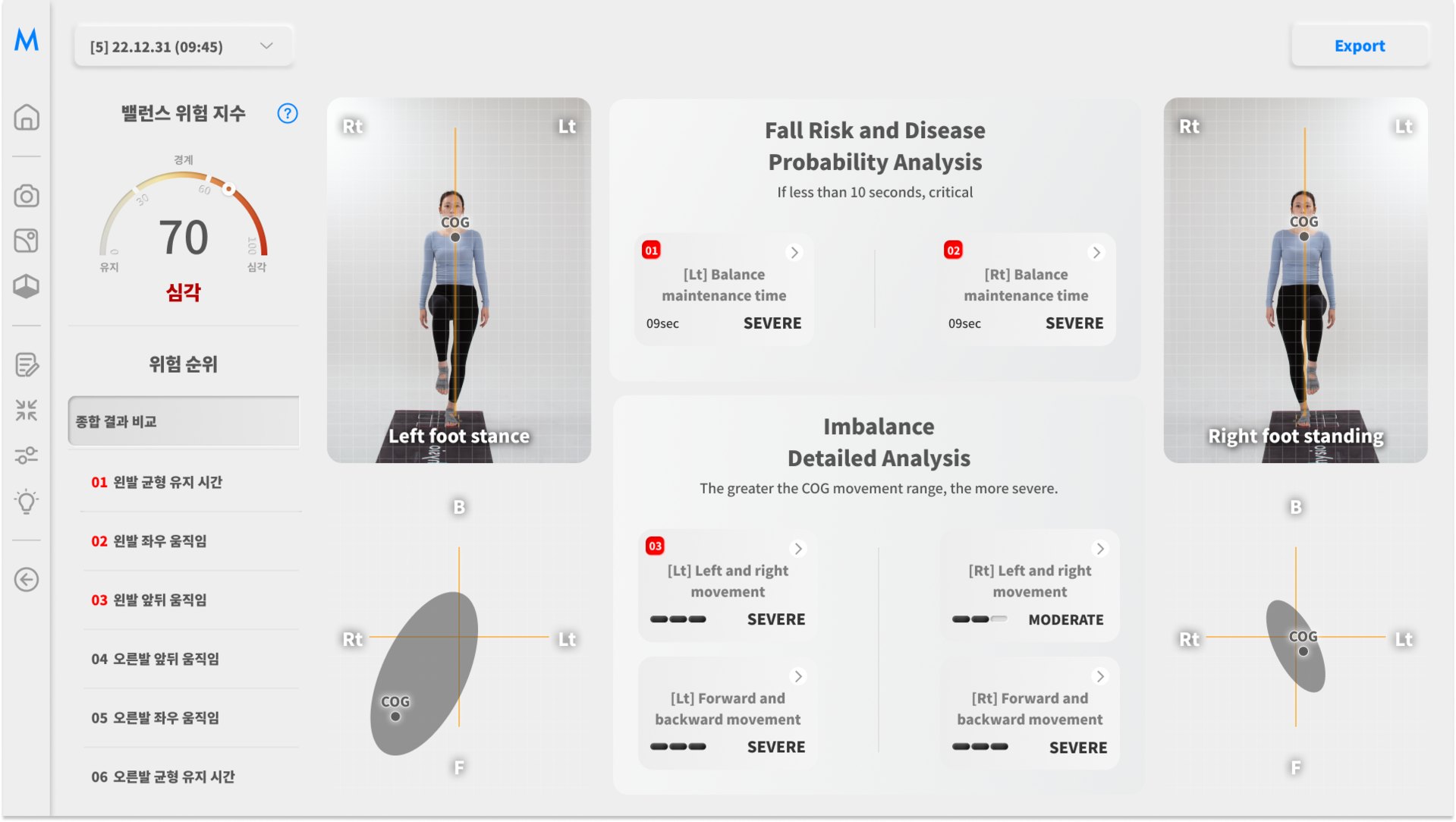

1. Balance Imbalance Index

• Click the ❔  icon to check the imbalance level criteria.
• Balance hold time significantly
  impacts the score—if the user cannot maintain balance for 10 seconds, the score is greatly affected.



2. Left-Right Balance Score & Movement Coordinates

• Higher scores indicate poorer balance control and an increased fall risk.
• Fall Risk & Imbalance Details
• Compare Mild, Moderate, and Severe levels for each factor.
• Analyze the position and size of circles in the graph to assess balance distribution.



3. Movement Evaluation Items

• Left Leg Balance Hold Time:
  Standing on the right leg

• Right Leg Balance Hold Time:
  Standing on the left leg

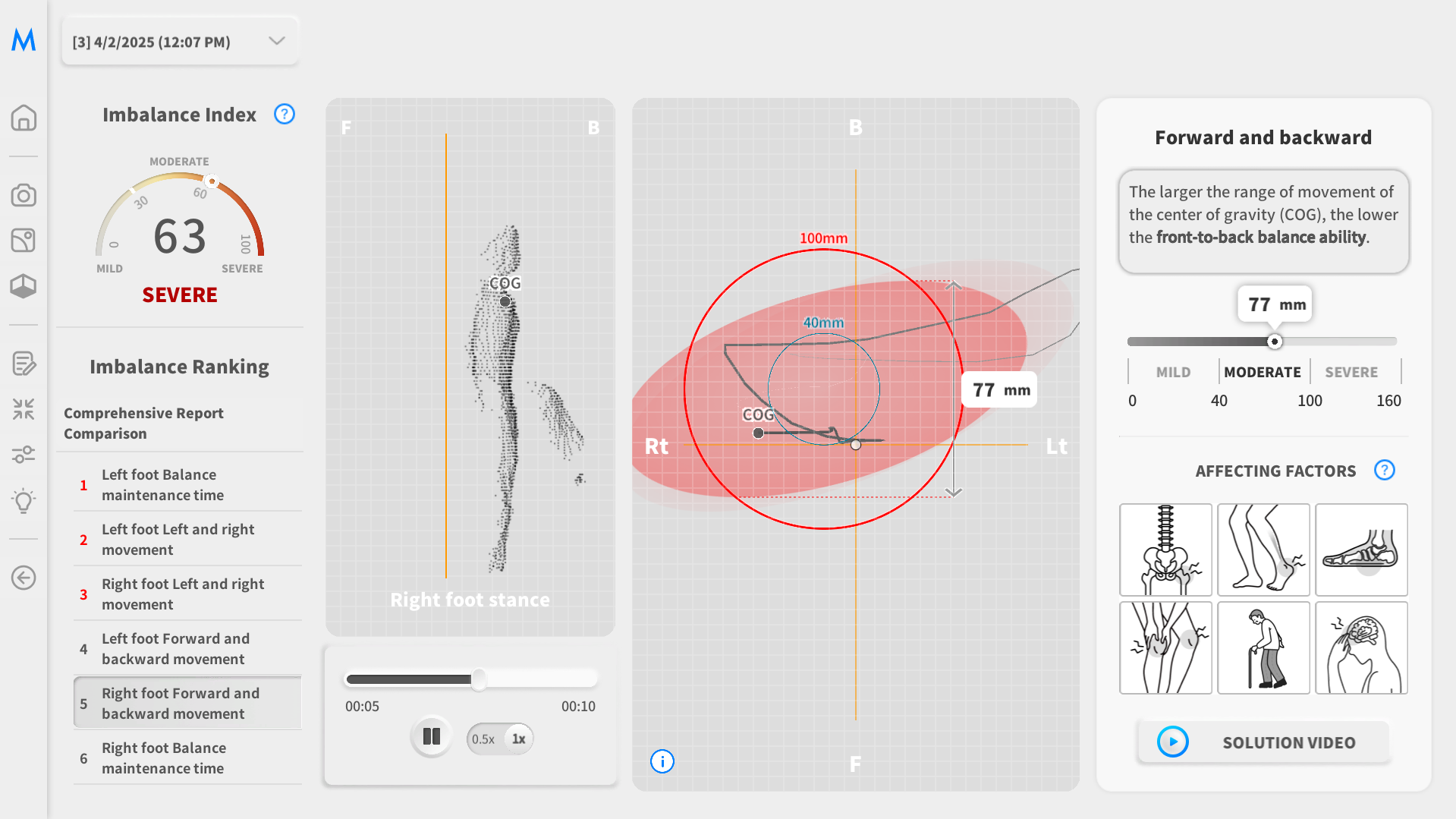

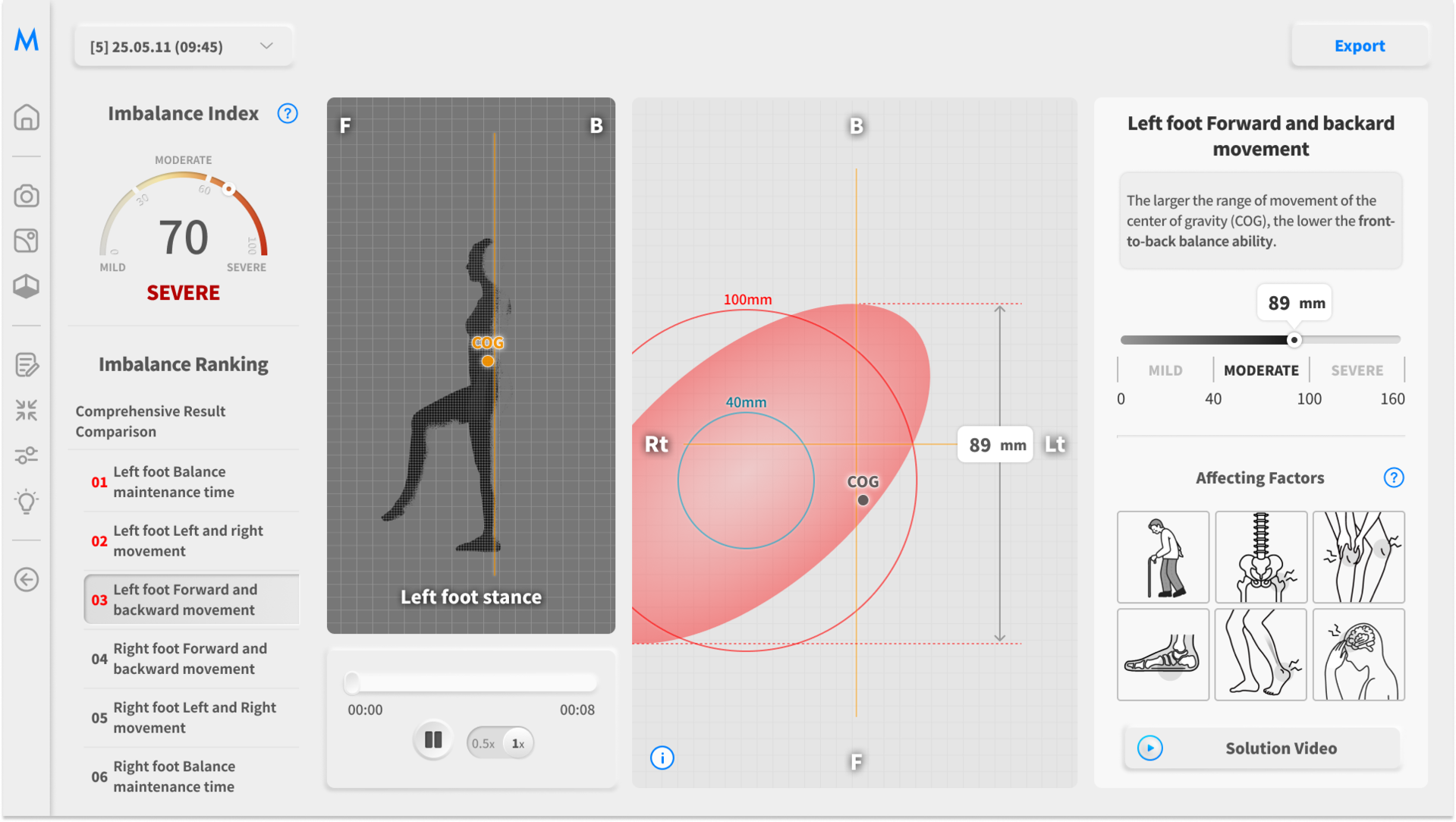

4. Left-Right Balance Score & Movement Coordinates (COG)

• Higher scores indicate poorer balance control and an increased risk of falls.
• Analyze Fall Risk and Potential Disease Risks.
• Compare the severity levels of each factor: Mild, Moderate, Severe.
• Compare the position and size of the circles shown in the bottom graph to assess balance distribution.

5. Comprehensive Results

• Identify the Top 3 risk factors, starting with the most critical (displayed in the left list or central tile).

6. Detailed Results

• View detailed results for each factor.
• Ellipse (Movement Trajectory) Explanation: The smaller the movement range and the closer it is to the starting position, the better the balance.

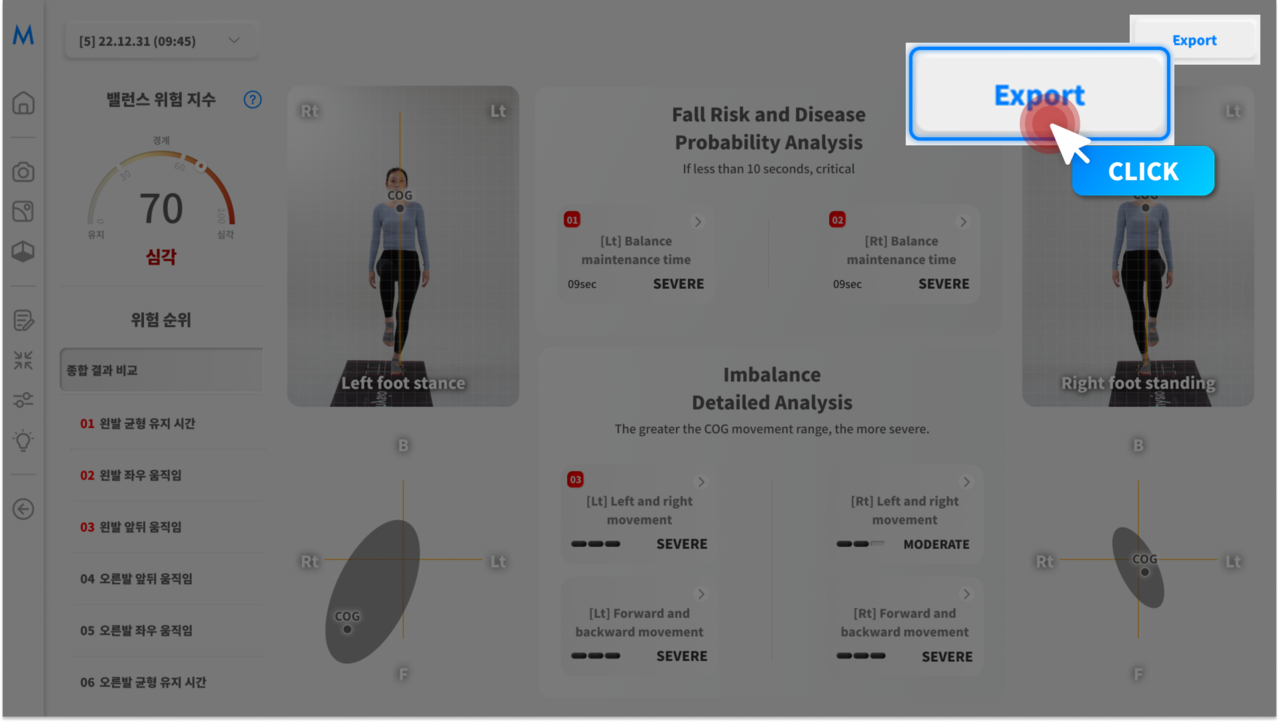

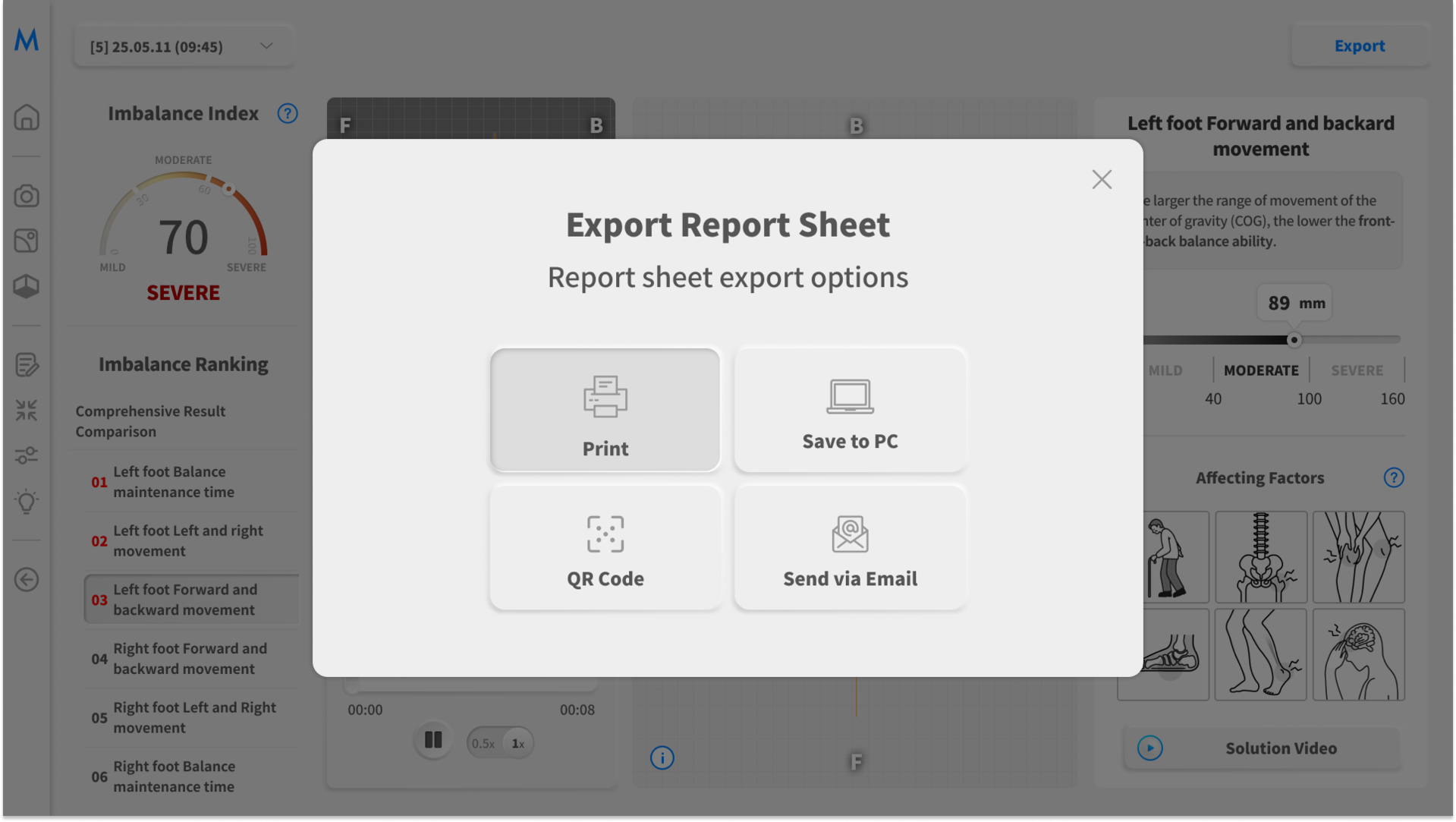

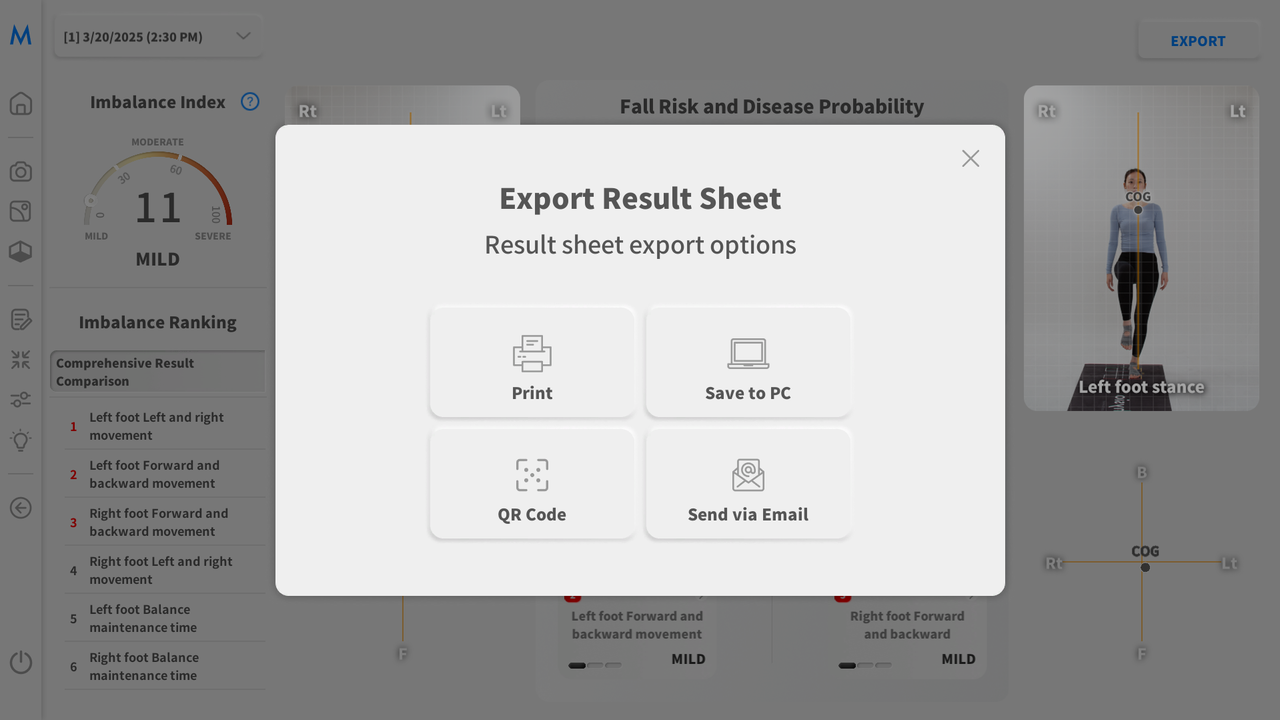

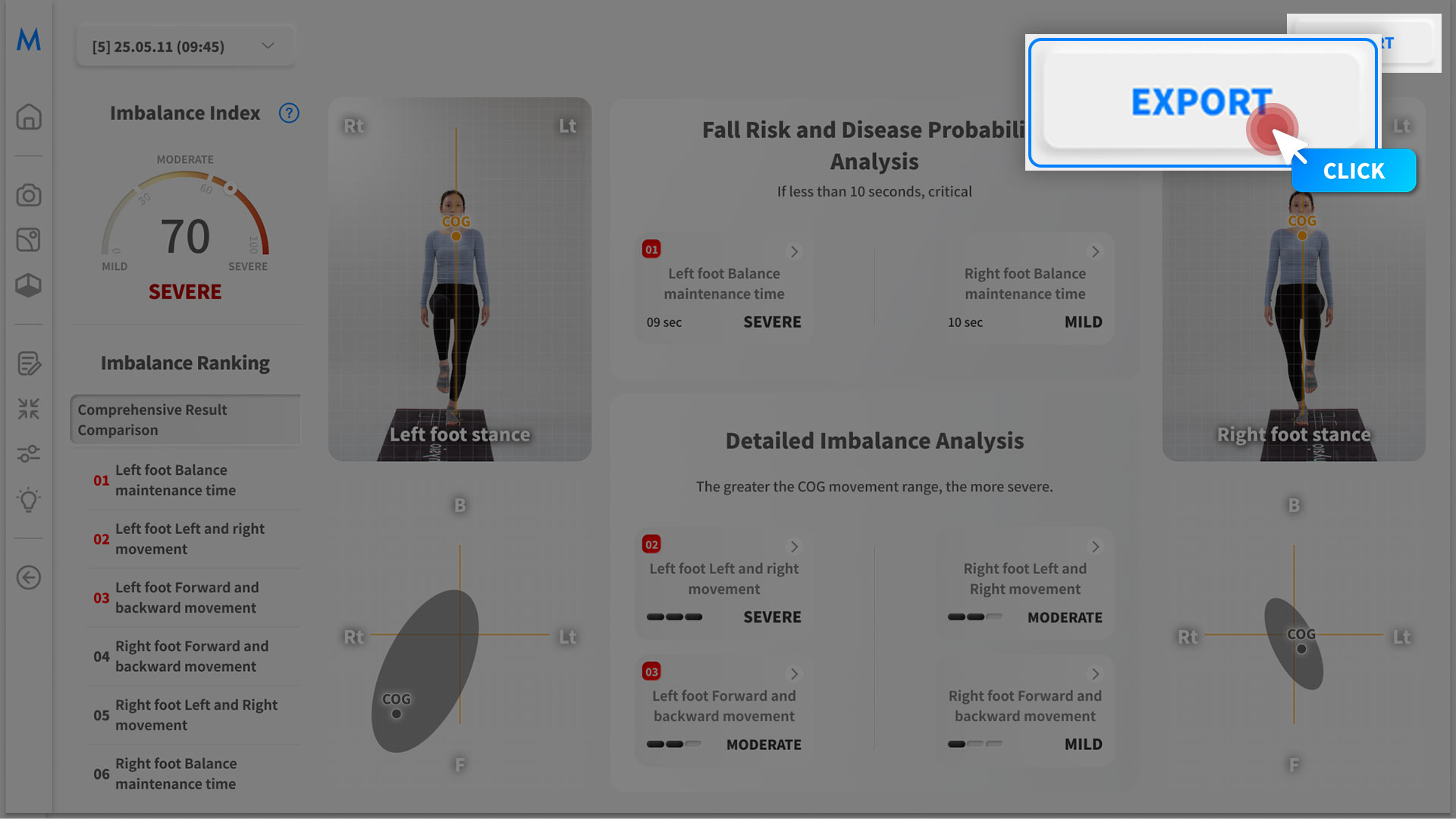

7. Result Sheet Extraction

• Use the result sheet during counseling to explain left and right balance, as well as imbalance ranking.
• Send the result sheet with the solution videos via email.

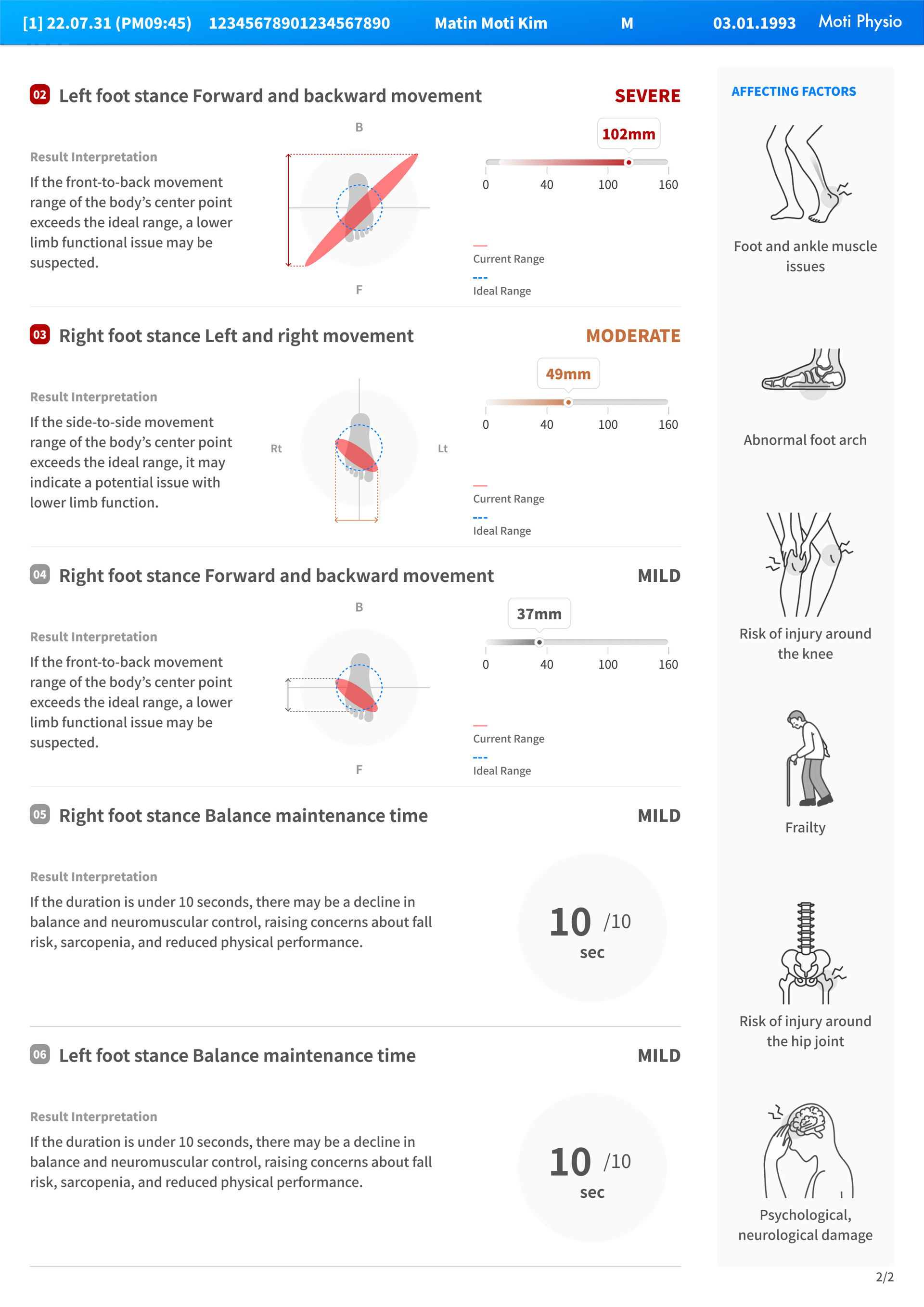

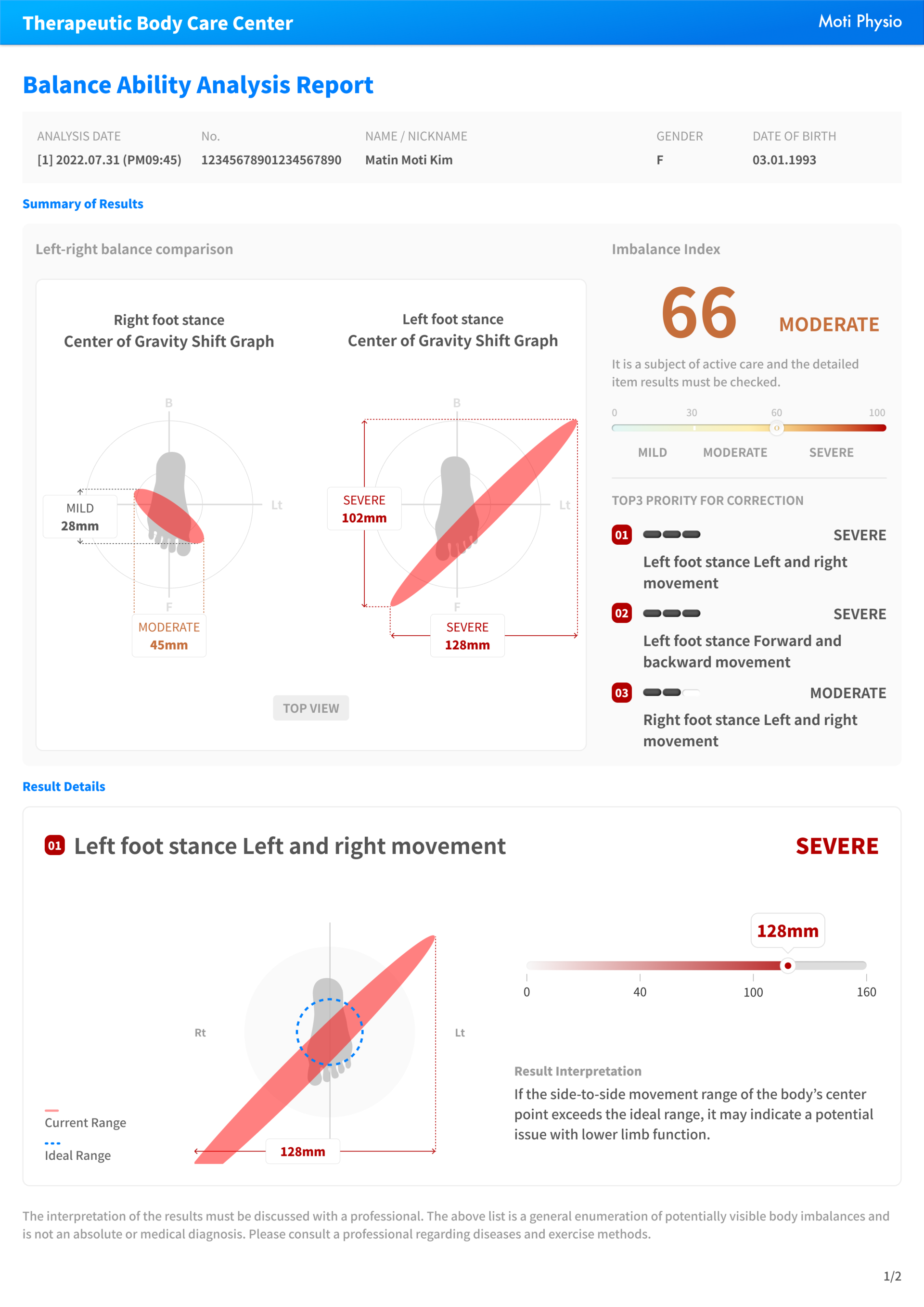

8. Result Sheet Sample
